SSQ-108-23-F-S-LL
数据手册.pdf
Samtec
申泰电子
电子元器件分类
SSQ-108-23-F-S-LL中文资料参数规格
其他
Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" 2.54mm
Number of Rows 1
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin 0.076µm
Insulation Color Black
Insulation Height 0.335" 8.51mm
Contact Length - Post 0.394" 10.00mm
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer LCP
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSQ-108
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289765-SSQ-108-23-F-S-LL
Fake Threat In the Open Market 46 pct.
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
SSQ-108-23-F-S-LL引脚图与封装图

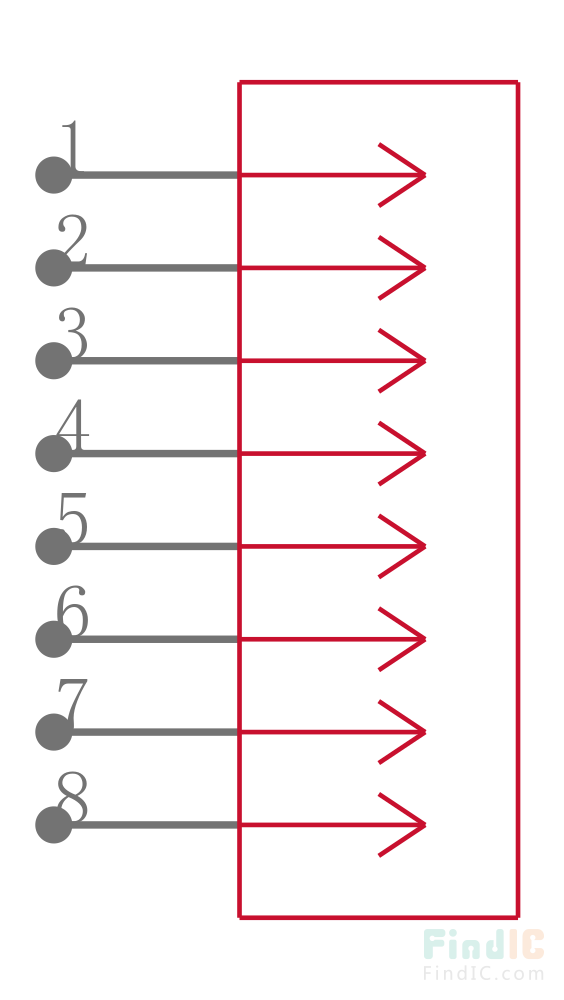

SSQ-108-23-F-S-LL引脚图

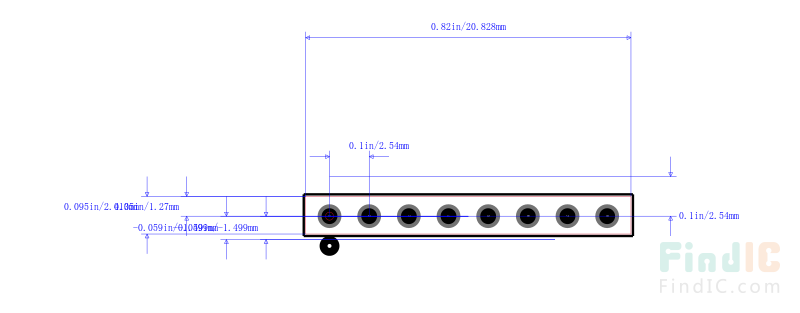

SSQ-108-23-F-S-LL封装图
SSQ-108-23-F-S-LL封装焊盘图
在线购买SSQ-108-23-F-S-LL
| 型号 | 制造商 | 描述 | 购买 |
|---|---|---|---|
| SSQ-108-23-F-S-LL | Samtec 申泰电子 | Conn Socket Strip SKT 8POS 2.54mm Solder ST Thru-Hole | 搜索库存 |
