MTMM-125-15-F-S-150
Samtec
申泰电子
电子元器件分类
MTMM-125-15-F-S-150中文资料参数规格
其他
Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series MTMM
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.079" 2.00mm
Number of Positions 25
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.150" 3.81mm
Contact Length - Post 0.621" 15.77mm
Overall Contact Length 0.830" 21.08mm
Insulation Height 0.059" 1.50mm
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin 0.076µm
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer LCP
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating Amps 3A
Base Product Number MTMM-125
MSL Level 1 Unlimited
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 984466-MTMM-125-15-F-S-150
Fake Threat In the Open Market 54 pct.
MTMM-125-15-F-S-150引脚图与封装图

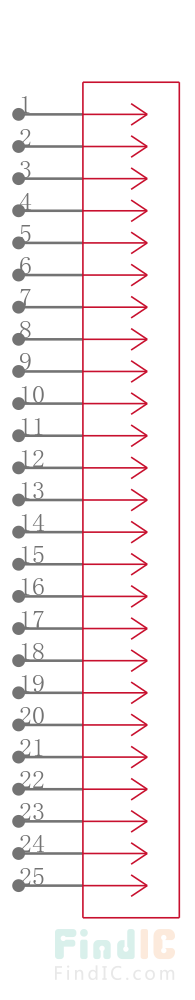

MTMM-125-15-F-S-150引脚图
MTMM-125-15-F-S-150封装图
MTMM-125-15-F-S-150封装焊盘图
在线购买MTMM-125-15-F-S-150
| 型号 | 制造商 | 描述 | 购买 |
|---|---|---|---|
| MTMM-125-15-F-S-150 | Samtec 申泰电子 | Conn Unshrouded HDR 25 POS 2mm Solder ST Through Hole | 搜索库存 |
