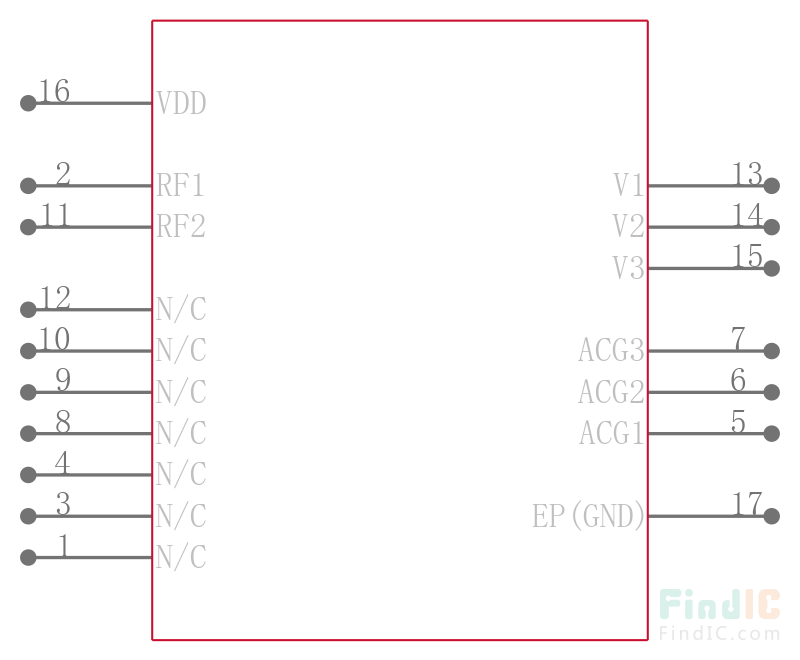

3Bits 1dBStep 7dB Digital Attenuator 6GHz 16Pin QFN EP T/R
Product Details
The HMC468ALP3E is a broadband 3-bit GaAs IC digital attenuators in a low cost leadless surface mount package. Covering DC to 6.0 GHz, the insertion loss is less than 1 dB typical up to 4 GHz. The attenuator bit values are 1 LSB, 2 and 4 dB for a total attenuation of 7 dB. Attenuation accuracy is excellent at ±0.4 dB typical step error with an IIP3 of +55 dBm. Three control voltage inputs, toggled between 0 and +5V, are used to select each attenuation state. A single Vdd bias of +5V is required.
Applications
- .
- Cellular; UMTS/3G Infrastructure
- .
- Fixed Wireless & WLL
- .
- Microwave Radio & VSAT
- .
- Test Equipment
### Features and Benefits
- .
- 1 dB LSB Steps to 7 dB
- .
- High IP3: +55 dBm
- .
- ±0.25 dB Typical Bit Error
- .
- Single Control Line Per Bit
- .
- Single +5V Supply
- .

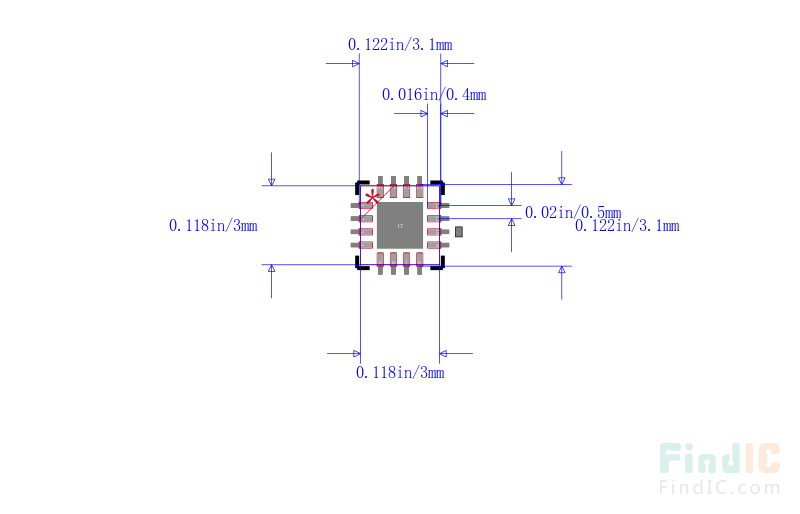

- 3x3 mm SMT Package
