HMC194AMS8E
数据手册.pdf
ADI
亚德诺
电子元器件分类
射频开关, GaAs MMIC SPDT, DC至3GHz, 0V至7V控制电压, MSOP-8
Product Details

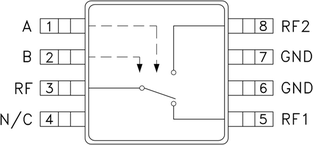

The is a low-cost SPDT switch in an 8-lead MSOP packag for use in applications which require high isolation between two RF paths. The devices can control signals from DC to 3 GHz and have been optimized to provide extremely high isolation with minimal insertion loss in medium and low power applications. On chip circuitry allows positive voltage control operation at very low DC cur- rents with control inputs compatible with CMOS and most TTL logic families. RF1 and RF2 are reflective opens when “OFF”.
**Applications**
- .
- Cellular/PCS Base Stations
- .
- Portable Wireless
- .
- MMDS & WirelessLAN
### Features and Benefits
- .
- Ultra Small Package: MSOP8
- .
- High Isolation: 50 dB
- .
- Positive Control: 0/+3V to 0/+7V
