TE Connectivity 泰科 连接器

TE Connectivity 0.8mm Free Height FH Vertical Board to Board Receptacle Connectors0.8mm Free Height FH board to board or mezzanine SMT receptacle connectors for use in parallel board stacking applications. These Free Height FH mezzanine connectors have a high density subminiature packaging with a .031mm centreline spacing making it possible to save more than 50% space on the PCB compared to 1.27mm centreline connectors. The contacts of these 0.8mm Free Height FH connectors have a bellows type spring design that is resistant to scooping and stubbing when the connector is mated and unmated and offers a reliable electrical connection. These 0.8mm Free Height FH receptacles feature polarization to ensure accurate mating and have PCB postioning bosses for accurate placement on the PCB. A range of board to board stacking heights from 5 to 16mm can be achieved by mating these 0.8mm FH receptacles with different board mount plugs. Typical applications for these 0.8mm Free Height FH board to board receptacle connectors include notebook PCs, pen pads, mobile phones and other electronic equipment that requires miniature connector packaging. Part numbers X-5177983-X and 5177985-X are 5mm FH vertical receptacles for 5, 6, 7 and 8mm stacking heights Part numbers X-5179009-X and X-5179180-X are 9mm FH vertical receptacles for 9, 10, 11 and 12mm stacking heights Part numbers X-5179010-X and X-5084616-X are 13mm FH vertical receptacles for 13, 14, 15 and 16mm stacking heights### 0.8mm 板对板 - TE Connectivity

0.8mm Free Height FH 垂直板对板插座

0.8mm Free Height FH 板对板或夹层 SMT 插座连接器,用于并行板堆叠应用。这些 Free Height FH 夹层连接器具有高密度超微型封装,中心线间距仅为 0.031mm,这使其在印刷电路板上比 1.27mm 中心线连接器节省了 50% 的空间。这些 0.8mm Free Height FH 连接器的触点采用波纹管式弹簧设计,可在连接器配接和取消配接时耐受刮损和残断,提供可靠的电气连接。这些 0.8mm Free Height FH 插座具有极化设计,以确保准确配接,并具有印刷电路板定位轮毂,用于准确放置在印刷电路板上。配接这些具有不同板安装插头的 0.8mm FH 插座,可实现 5 至 16mm 的一系列板对板堆叠高度。

这些 0.8mm Free Height FH 板对板插座连接器的典型应用包括:笔记本电脑、笔垫、移动电话和其他需要微型连接器包装的电子设备。

部件号 X-5177983-X 和 5177985-X 是 5 mm FH 垂直插座,可用于实现 5、6、7 和 8mm 堆叠高度

部件号 X-5179009-X 和 5177985-X 是 9 mm FH 垂直插座,可用于实现 9、10、11 和 12mm 堆叠高度

部件号 X-5179010-X 和 X-5084616-X 是 13mm FH 垂直插座,可用于 13、14、15 和 16mm 的堆叠高度

5177985-4中文资料参数规格
技术参数

触点数 100

触点电镀 Gold, Tin over Nickel

额定电流 500 mA

排数 2

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 100

额定电流Max 0.5A/触头

额定电压Max 100 VAC

额定电压 100 VAC

接触电阻Max 30 mΩ

封装参数

安装方式 Surface Mount

引脚数 100

封装 SMD,P=0.8mm

外形尺寸

高度 5 mm

封装 SMD,P=0.8mm

物理参数

外壳颜色 Natural

颜色 Natural

触点材质 Beryllium Copper

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

5177985-4引脚图与封装图
5177985-4引脚图

5177985-4引脚图

5177985-4封装图

5177985-4封装图

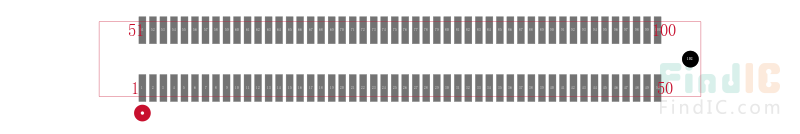

5177985-4封装焊盘图

5177985-4封装焊盘图
