SMCJ110CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

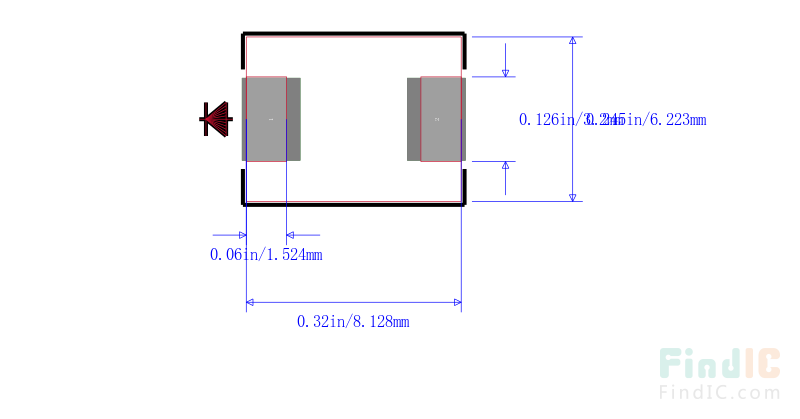

177V 夹子 8.5A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）

立创商城:
双向 Vrwm:110V 1.5kW

得捷:
TVS DIODE 110VWM 177VC DO214AB

贸泽:
ESD Suppressors / TVS Diodes 110Vr 1500W 8.5A 5% BiDirectional

艾睿:
Do not risk expensive equipment and machinery from surges with this SMCJ110CA TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 177 V and minimum breakdown voltage is 122 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 110V 1.5KW 2-Pin DO-214AB T/R

TME:
Diode: transil; 1.5kW; 128.5V; 8.5A; bidirectional; ±5%; DO214AB

Newark:
# LITTELFUSE  SMCJ110CA  TVS Diode, SMCJ Series, Bidirectional, 110 V, 177 V, DO-214AB, 2 Pins
