95J800
Ohmite 电子元器件分类

线绕电阻器 - 透孔 5watt 800ohm 5% Axial

Molded construction provides consistent shape and size which permits mounting in clips to extend power rating. Mechanical integrity is enhanced by the all-welded construction and the vitreous enamel coating is flame resistant. The durable vitreous enamel coating, which is silicone-free, permits the resistors to maintain a hard coating while operating at high temperatures. Ceramic core with solder coated axial leads.

**Features**

* Molded Construction Provides Consistent Shape and Size Permits Mounting in Clips, Which Extends Power Rating

* Meets Mil-R-26 Requirements for Insulated Resistors

* All-Welded Construction

* Flame-Resistant Vitreous Enamel Coating

* 5% Tolerance

95J800中文资料参数规格
技术参数

容差 5 %

额定功率 5 W

产品系列 90

电阻 800 Ω

阻值偏差 ±5 %

工作温度Max 350 ℃

工作温度Min 25 ℃

封装参数

安装方式 Axial

外形尺寸

长度 24.6 mm

直径 Φ6.70mm

物理参数

工作温度 25℃ ~ 350℃

温度系数 ±30 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 100

符合标准

RoHS标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8533210080

95J800引脚图与封装图

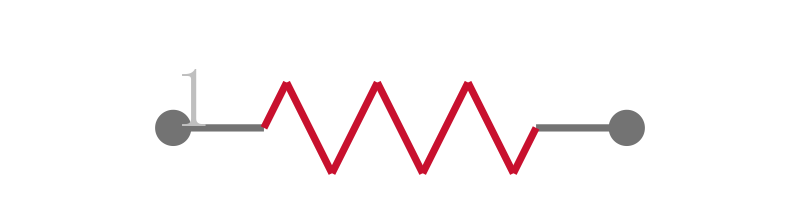

95J800引脚图

95J800引脚图

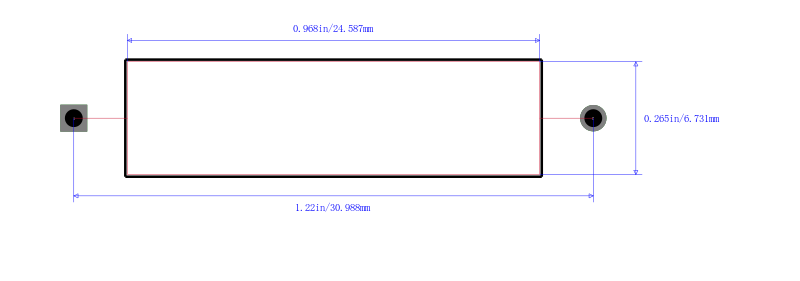

95J800封装图

95J800封装图

95J800封装焊盘图

95J800封装焊盘图
