934073100
Hirschmann 测试仪器

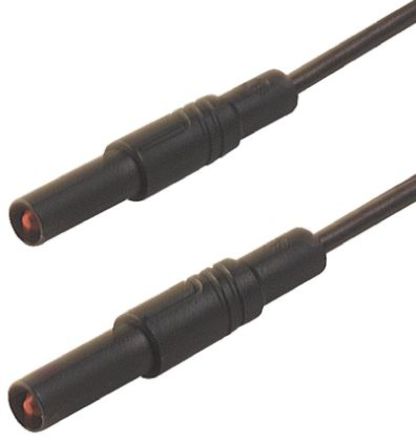

HIRSCHMANN TEST AND MEASUREMENT  934073100  测试线, 4mm香蕉插头至4mm香蕉插头, 黑色, 1 kV, 32 A, 500 mm

The is a Measuring Lead with nickel-plated beryllium copper contact spring. This test leads at either end 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. It offers highly flexible, double insulated stranded lead, grip and lead shatter-proof. It comes with built-in colour indicator for easy identification of insulation damages.

.
MLS GG 50/2.5 type
.
LEH-XY PVC cable
.
Polyamide housing
.
UL94V-2 Flammability rating
.
8mR Contact resistance
.
-15 to 70°C Temperature range
934073100中文资料参数规格
技术参数

额定电压DC 1.00 kV

额定电流 32 A

工作温度Max 70 ℃

工作温度Min -15 ℃

额定电压 1 kV

外形尺寸

脚长度 500 mm

物理参数

颜色 Black

工作温度 -15℃ ~ 70℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

934073100引脚图与封装图
暂无图片
在线购买934073100
型号 制造商 描述 购买
934073100 Hirschmann HIRSCHMANN TEST AND MEASUREMENT  934073100  测试线, 4mm香蕉插头至4mm香蕉插头, 黑色, 1 kV, 32 A, 500 mm 搜索库存
