Conn Backplane M 96POS 2.54mm Solder RA Thru-Hole

This backplane connector from Harting will provide an interface between devices. This M connector has 96 contacts that are plated with gold over nickel. It has a right angle body orientation. This is a 3-row connector. It has a male type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 94 mm long, 11 mm tall and 17.72 mm deep.

9031967921中文资料参数规格
技术参数

触点数 96

绝缘电阻 1000000 MΩ

额定电流Max 2 A

接触电阻Max 20 mΩ

外形尺寸

高度 11 mm

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

9031967921引脚图与封装图
9031967921引脚图

9031967921引脚图

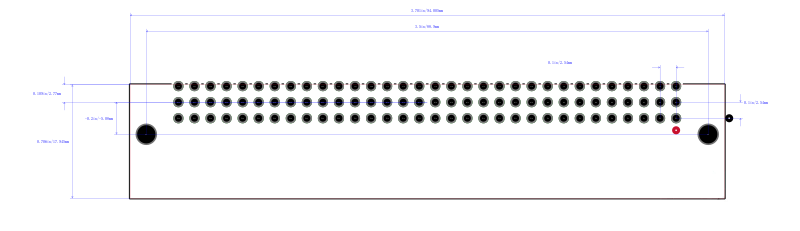

9031967921封装图

9031967921封装图

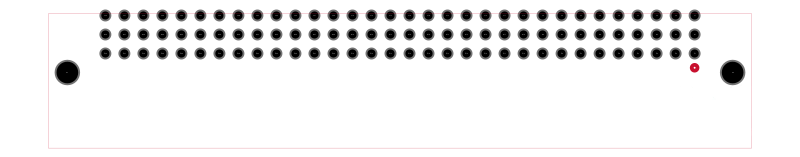

9031967921封装焊盘图

9031967921封装焊盘图
