93LC76-I/P

8K / 16K 2.5V Microwire串行EEPROM 8K/16K 2.5V Microwire Serial EEPROM

Description:

The Technology Inc. 93LC76/86 are 8K and 16K low voltage serial Electrically Erasable PROMs. The device memory is configured as x8 or x16 bits depending on the ORG pin setup. Advanced CMOS technology makes these devices ideal for low power nonvolatile memory applications. These devices also have a Program Enable PE pin to allow the user to write-protect the entire contents of the memory array. The 93LC76/86 is available in standard 8-pin PDIP and 8-pin surface mount SOIC packages.

Features:

• Single supply with programming operation down to 2.5V

• Low-power CMOS technology

   - 1 mA active current typical

   - 5 µA standby current typical at 3.0V

• ORG pin selectable memory configuration

   1024 x 8 or 512 x 16 bit organization 93LC76

   2048 x 8 or 1024 x 16 bit organization 93LC86

• Self-timed erase and write cycles including auto-erase

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

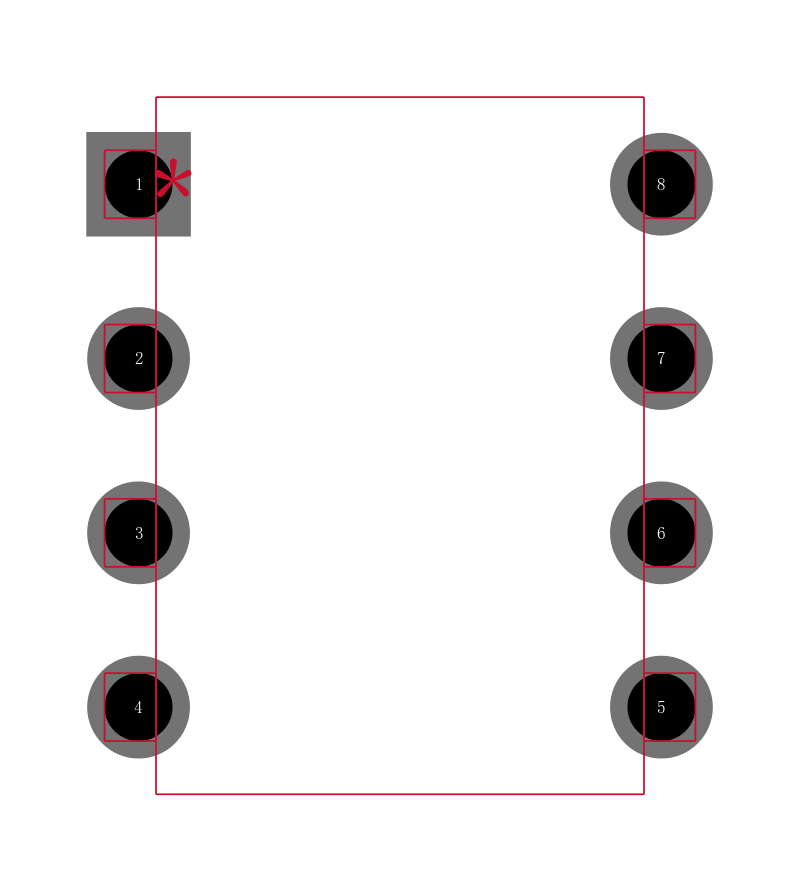

• 8-pin PDIP/SOIC package

• Temperature ranges available

   - Commercial C 0°C to +70°C

   - Industrial I -40°C to +85°C
