83FR249
Ohmite 电子元器件分类

线绕电阻器 - 透孔 3watt .249ohm 1% Axial

High quality conformal silicone-ceramic coated resistors for applications requiring high precision, power and stability. These resistors have a low temperature coefficient and maintain a high degree of stability under demanding conditions. They feature all-welded construction and have the ability to maintain accurate resistance values due to being stabilized. Ceramic core with solder coated axial leads.
.
*

Features:

**

* High Stability ±1% Tolerance**

**

* Designed for Precision Power Applications**

**

* All Welded Construction

83FR249中文资料参数规格
技术参数

容差 ±1 %

额定功率 3 W

产品系列 80

电阻 0.249 Ω

阻值偏差 ±1 %

工作温度Max 275 ℃

工作温度Min 25 ℃

封装参数

安装方式 Axial

封装 轴向引线

外形尺寸

长度 15.1 mm

直径 Φ5.50mm

封装 轴向引线

物理参数

工作温度 25℃ ~ 275℃

温度系数 ±90 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 100

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8533210080

83FR249引脚图与封装图

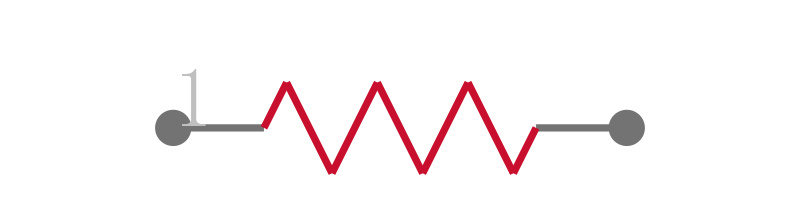

83FR249引脚图

83FR249引脚图

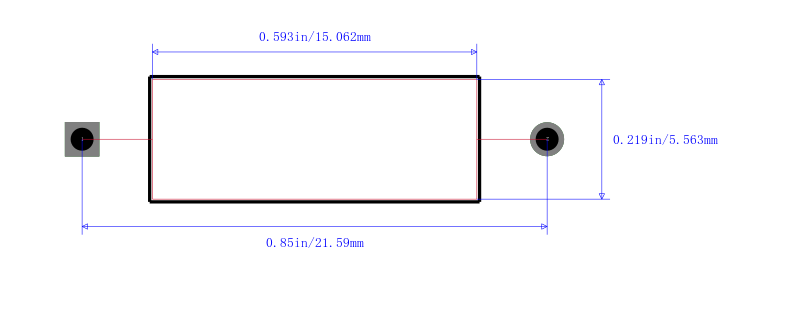

83FR249封装图

83FR249封装图

83FR249封装焊盘图

83FR249封装焊盘图
