87V-EX

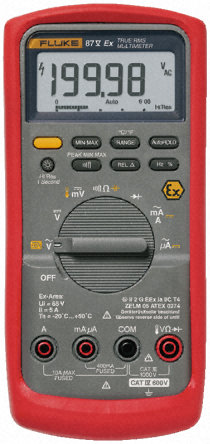

FLUKE  87V-EX  安全万用表

With its high performance, accuracy and motor drive compatibility, the 87V is the most popular industrial multimeter in the world. Now Fluke has introduced a new intrinsically safe version - the 87V Ex - for measurements in and around hazardous areas. The new Fluke 87V Ex has all the measurement and troubleshooting functions of the proven Fluke 87V. Unlike most other ATEX-certified tools, it can be used both inside and outside the hazardous zone ATEX Zones 1 & 2 without compromising performance or compliance. So there"s no need to carry different tools for use inside or outside the hazardous zones. It also has a built-in thermometer with TC probe, further reducing technicians" tool counts.

.

ATEX safety rating for use in Ex-zone 1 and zone 2

.

CAT IV 600 V electrical safety rating

.

Accurate voltage and frequency measurements on variable speed motor drives VSD"s

.

Large display with bright, two-level backlight

.

Built-in thermometer probe included

.

True-rms ac voltage and current for accurate measurements on non-linear signals

.

4-1/2 digit mode for precise measurements 20,000 counts

.

Measure up to 1000 V and 10 A ac/dc

.

Frequency to 200 kHz and % duty cycle

.

Resistance, continuity and diode test

.

10,000 µF capacitance range for components and motor caps

.

Min/Max-Average and Peak capture to record transients and variations automatically

.

Relative mode to remove test lead interference on resistance measurements

.

Auto and manual ranging for maximum flexibility

.

Analog bargraph for fast changing or unstable signals

.

Input Alert provides
