84534-8

Conn FFC Connector SKT 8POS 2.5mm Solder ST Thru-Hole Tray

8 位置 FFC 触头，垂直 - 单侧 0.049"（1.25mm） 通孔

得捷:
CONN FFC VERT 8POS 1.25MM PCB

艾睿:

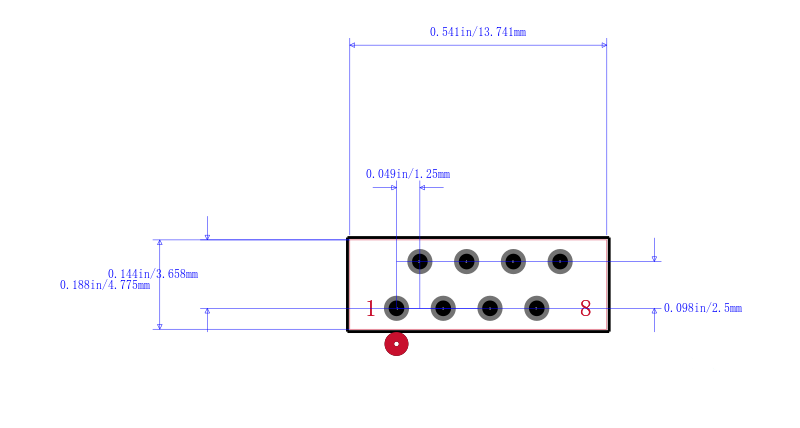

Utilize FFC technology with this ffc connector 84534-8 flexible flat cable from TE Connectivity which can hold many transmission channels on a very narrow, very flat ribbon-like structure. This is a 1-row connector. It has a maximum voltage rating of 50 VAC. This socket type connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 1.25 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. 84534-8 is housed in white polybutylene terephthalate. This product is 13.75 mm long, 7.8 mm tall and 4.8 mm deep. This flexible flat cable has an operating temperature of -20 to 80 °C. It uses the solder termination method.

安富利:
Conn FFC Connector SKT 8 POS 2.5mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn FFC Connector SKT 8 POS 1.25mm Solder ST Thru-Hole Tray

Verical:
Conn FFC Connector SKT 8 POS 1.25mm Solder ST Thru-Hole Box/Tray

MASTER:
ASSY, 1.25mm FFC CONN, VERTICAL POST PLATED

Powell:
FPC Flexible Printed Circuit Connectors

Online Components:
1.25MM FFC POST PLATED V 8P

Electro Sonic:
1.25MM FFC POST PLATED V 8P
