74ACT11000
TI
德州仪器
电子元器件分类
四路 2 输入正与非门
These devices contain four independent 2-input NAND gates. They perform the Boolean functions Y = A \x95 B\ or Y = A\ + B\ in positive logic.
The 54ACT11000 is characterized for operation over the full military temperature range of -55°C to 125°C. The is characterized for operation from -40°C to 85°C.
- .
- Inputs Are TTL-Voltage Compatible
- .
- Flow-Through Architecture Optimizes PCB Layout
- .
- Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise
- .
- EPICTM Enhanced-Performance Implanted CMOS 1-um Process
- .
- 500-mA Typical Latch-Up Immunity at125°C
- .

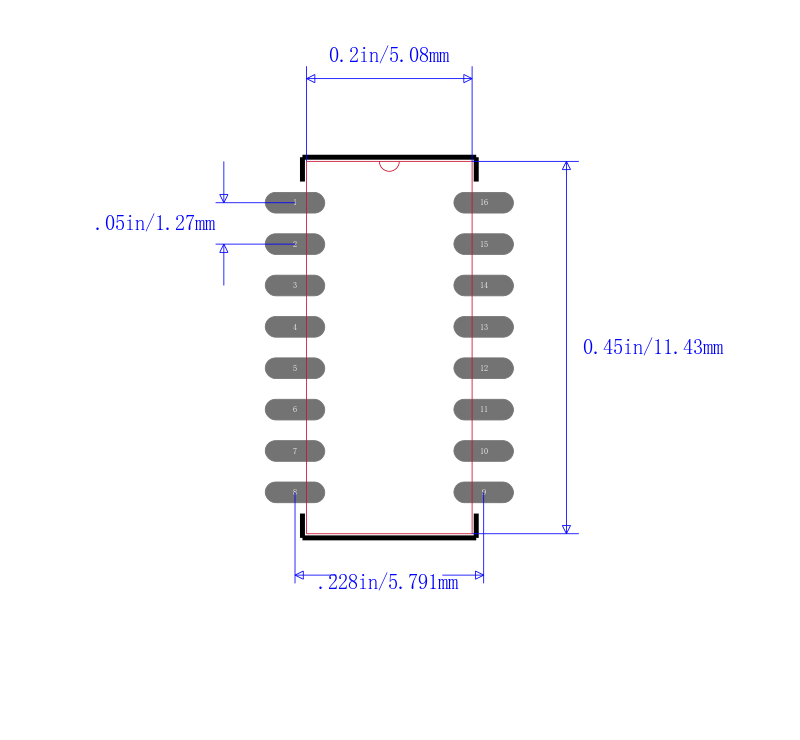

- Package Options Include Plastic
Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
EPIC is a trademark of Texas Instruments Incorporated.
