7B40-06-2

隔离电压或电流输入 Isolated Voltage or Current Input

Product Details

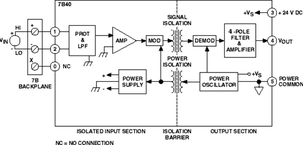

The 7B40 is a new addition to our highly acclaimed 7B Series of Process Control Signal Conditioners. The 7B40 accepts mV/Volt inputs from ±5 mV up to ±1 V as standard ranges, the standard outputs are 1 to 5 V or 0 to +10 V. The 7B40 is a wide bandwidth conditioner with standard bandwidth of 10 KHz. Filtering on the 7B40 is a 7 pole Butterworth function.

### Features and Benefits

.

Accepts mV Inputs

.

Current Sense Applications

.

10 KHz BW

.

1-5V or 0-10V Output
