796867-5
数据手册.pdfConn Shrouded Header HDR 5POS 5.08mm Solder ST Thru-Hole Carton
5 针位端子块 接头,公引脚,带罩(4 面) 0.200"(5.08mm) 垂直 - 通孔
得捷:
TERM BLOCK HDR 5POS VERT 5.08MM
贸泽:
Pluggable Terminal Blocks 5 POS HDR VERTICAL
艾睿:

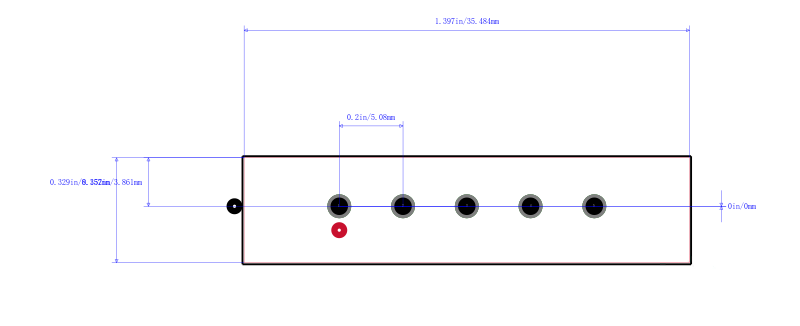

This shrouded 796867-5 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 5.08 mm. It has a header type gender. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 15 A/contact. It uses the solder termination method. This product is 35.48 mm long, 12 mm tall and 8.35 mm deep. 796867-5 is housed in green polyamide 6/6.
Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 5.08mm Solder ST Thru-Hole Carton
MASTER:
TERMINAL BLOCK HEADER ASSEMBLY, VERTICAL, WITH LOCKING SCREW
Powell:
Terminal Block Connectors
Online Components:
5 POS TERMI-BLOK HDR VERTICAL
Electro Sonic:
5 POS TERMI-BLOK HDR VERTICAL
