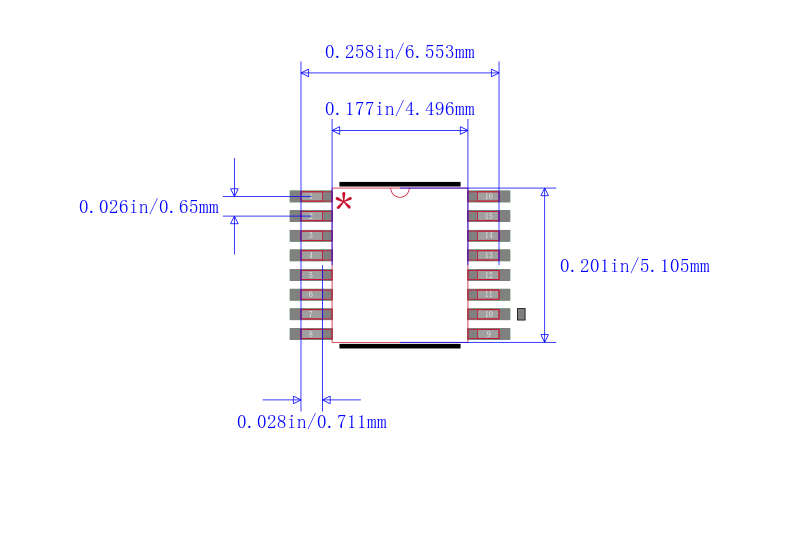

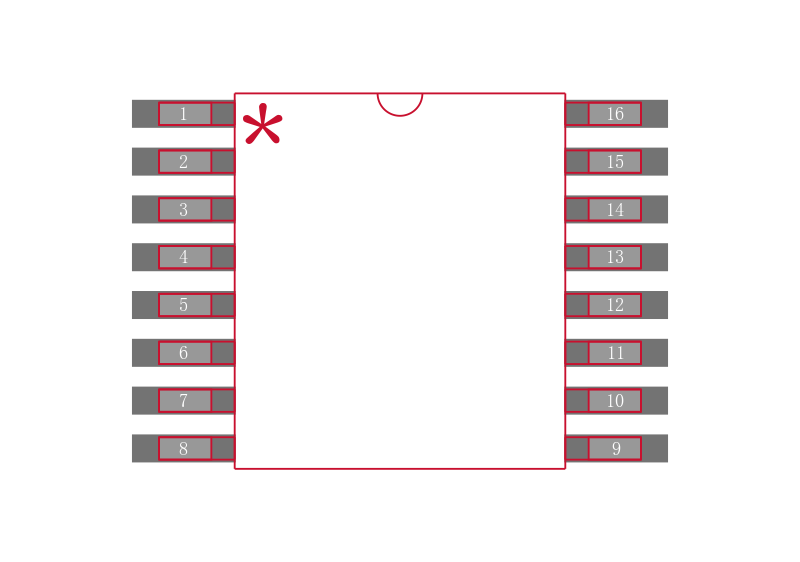

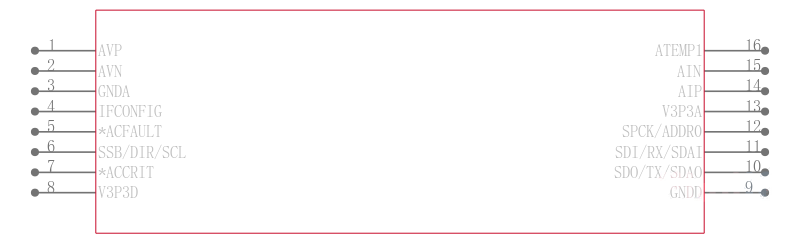

The is an energy measurement processor for single-phase power supply units in 16 pin TSSOP package. It is designed to interface to the host processor via the UART interface. It provides four analogue inputs two differential and two single ended for interfacing to voltage, current and two optional temperature sensors. The scaled voltages from sensors are fed to single converter front-end utilizing a high-resolution delta-sigma converter. An embedded 24bit energy measurement processor EMP and firmware performs all necessary computation, compensation and data formatting for accurate, real time reporting to host. IC with integrated flash memory is a completely autonomous solution capable of storing non-volatile data such as calibration coefficients and input configuration settings. It is specifically used for real time monitoring at the input of AC/DC power converters used in data centres and IT server rooms.

.

Supply voltage range is 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Delta-sigma ADC with precision voltage reference

.

Internal or external oscillator timing reference

.

SPI, I2C or UART interface with configurable I/O pins for alarm signal, address pins or user control

.

RMS calculations for current, voltage, line frequency, real power, reactive power & apparent power

.

Compensation for ambient temperature, sensor tolerances, offsets and EMI filter components

.

Real-time data accumulation based on an integer number of AC cycles

.

Quick calibration routines for manufacturability

.

Up to two voltage inputs for optional connection to thermal sensors
