74HC85N

NXP  74HC85N  芯片, 74HC CMOS逻辑器件

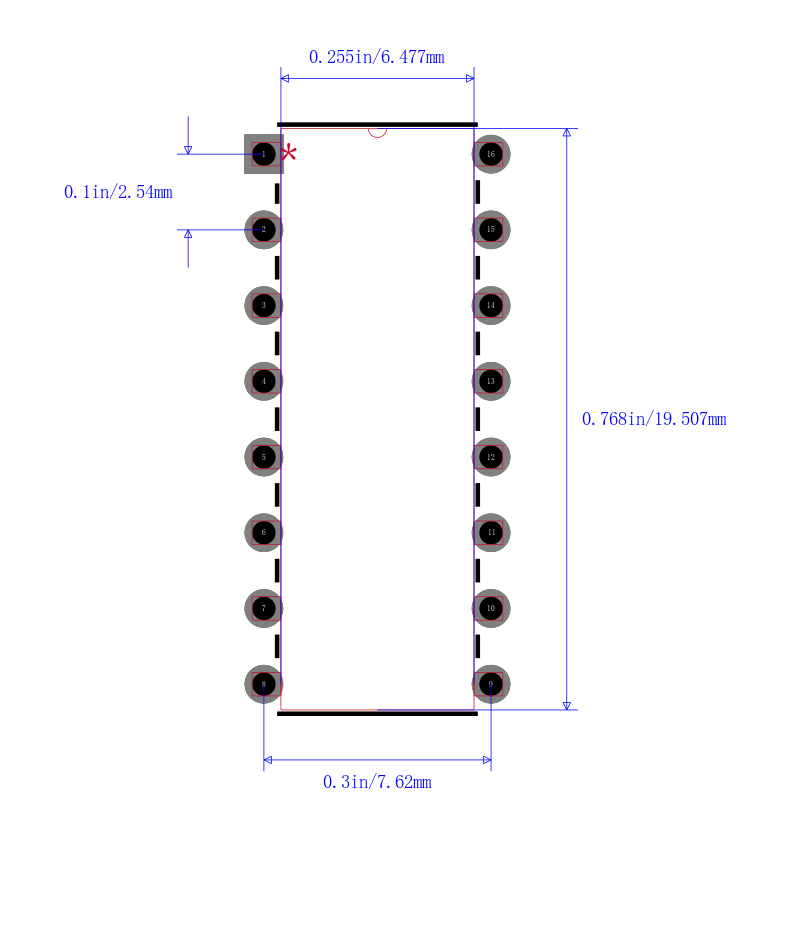

The is a 4-bit CMOS Magnitude Comparator pin compatible with low power Schottky TTL LSTTL. It can be expanded to almost any length. It performs the comparison of two 4-bit binary, BCD or other monotonic codes and present the three possible magnitude results at the outputs. The 4-bit inputs are weighted, where A3 and B3 are the most significant bits. The upper part of the table describes the normal operation under all conditions that will occur in a single device or in a series expansion scheme. In the upper part of the table the three outputs are mutually exclusive. In the lower part of the table, the outputs reflect the feed forward conditions that exist in the parallel expansion scheme. For words greater than 4-bits, units can be cascaded by connecting outputs QA<Β, QA>B and QA=B to the corresponding inputs of the significant comparator.

.

Serial or parallel expansion without extra gating

.

Magnitude comparison of any binary words

.

Output capability - Standard

.

Complies with JEDEC standard No. 7A
