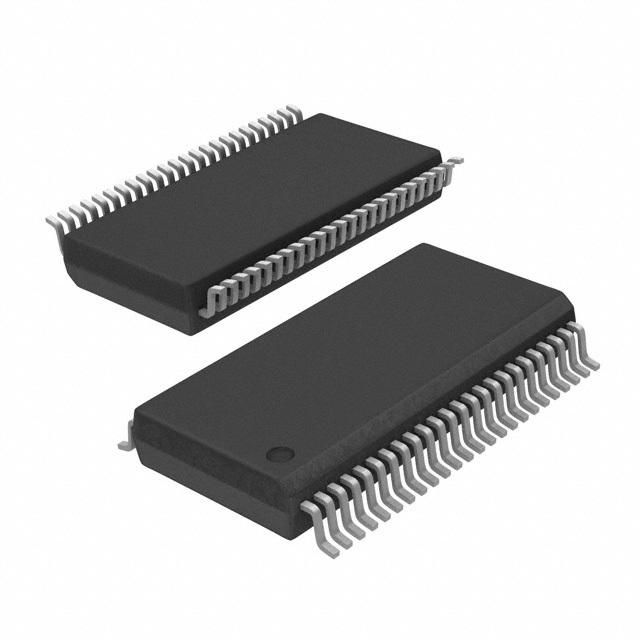

74VCX16374TTR

触发器 16-Bit "D" Flip-Flop

DESCRIPTION

The 74VCX16374 is a low voltage CMOS 16 BIT D-TYPE FLIP-FLOP with 3 STATE OUTPUTS NON INVERTING fabricated with sub-micron silicon gate and five-layer metal wiring C2MOS technology. It is ideal for low power and very high speed 1.8 to 3.6V applications; it can be interfaced to 3.6V signal environment for both inputs and outputs.

■ 3.6V TOLERANT INPUTS AND OUTPUTS

■ HIGH SPEED :

    tPD= 3.0 ns MAX. at VCC=3.0to3.6V

    tPD= 3.4 ns MAX. at VCC=2.3to2.7V

    tPD= 6.8 ns MAX. at VCC=1.8V

■ POWER DOWN PROTECTION ON INPUTS AND OUTPUTS

■ SYMMETRICAL OUTPUT IMPEDANCE:

    |IOH|=IOL= 24mA MIN at VCC=3.0V

    |IOH|=IOL= 18mA MIN at VCC=2.3V

    |IOH|=IOL=6mAMINatVCC=1.8V

■ OPERATING VOLTAGE RANGE: VCCOPR = 1.8V to 3.6V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 16374

■ LATCH-UP PERFORMANCE EXCEEDS 300mA JESD 17

■ ESD PERFORMANCE:

    HBM > 2000V MIL STD 883 method 3015; MM > 200V
