6B12

Input/Output Subsystem 15Pin Tray

Product Details

The 6B Series of modules and boards provides the hardware needed to implement a flexible, distributed monitoring and control application. By selecting only the modules and interfaces needed and connecting them via RS-485, the data acquisition and control strategy can be designed for optimum location of the I/O as well as minimizing sensor runs. The modularity and configurability of the 6B Series also makes them very cost effective.

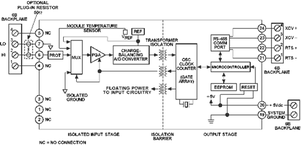

The and 6B12HV are single-channel isolated signal-conditioning modules which receive millivolt, voltage and process current signals. Unlike conventional signal conditioners, the 6B12 and 6B12HV are complete microcomputer-based data acquisition systems. A major advantage of the on-board microcontroller is its ability to be reconfigured for various sensor types and input ranges.

### Features and Benefits

.

Accepts mV and V Input

.

RS-485 Interface

|

.

National Instruments Labview Supported

.

2500V CMV Version Available 6B12-HV

---|---
