641210-5
数据手册.pdf集管和线壳 FRCTN LK HDR RA 5P Square post gold
针座 通孔，直角 5 位置 0.156"（3.96mm）
得捷:
CONN HEADER R/A 5POS 3.96MM
贸泽:
集管和线壳 FRCTN LK HDR RA 5P Square post gold
艾睿:

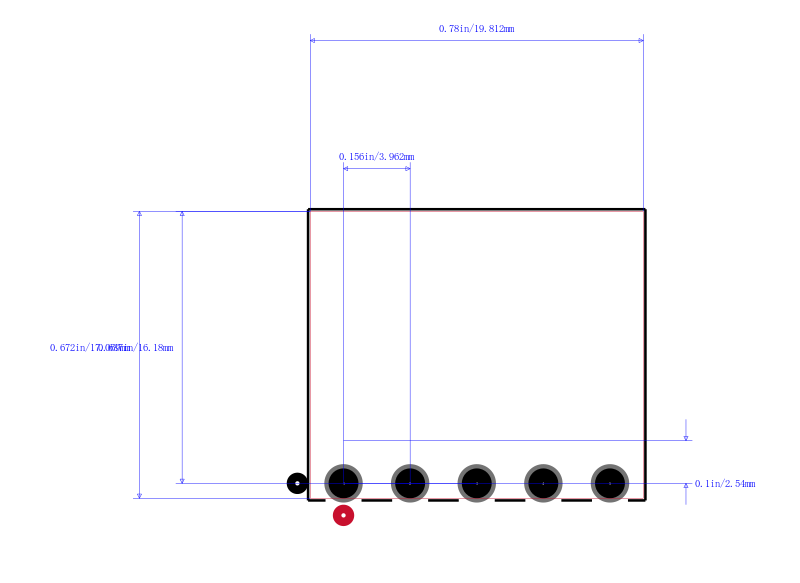

Thanks to TE Connectivity&s;s wire to board 641210-5 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. Its pitch is 3.96 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 7 A/contact. This product is 19.8 mm long, 7.62 mm tall and 18.72 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 641210-5 is housed in white polyester.
安富利:
Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole
Verical:
Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole Package
Electro Sonic:
05P MTA156 HRD FL RA FB 30AU
