5962-8876002PA

双精密运算放大器 DUAL PRECISION OPERATIONAL AMPLIFIERS

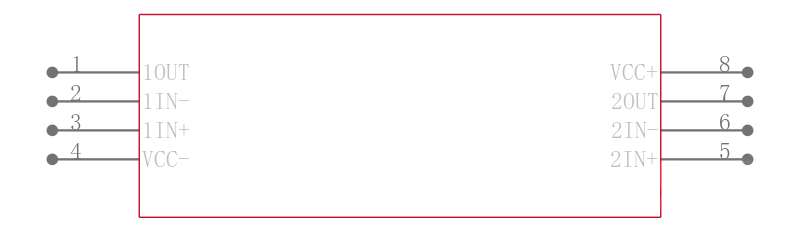

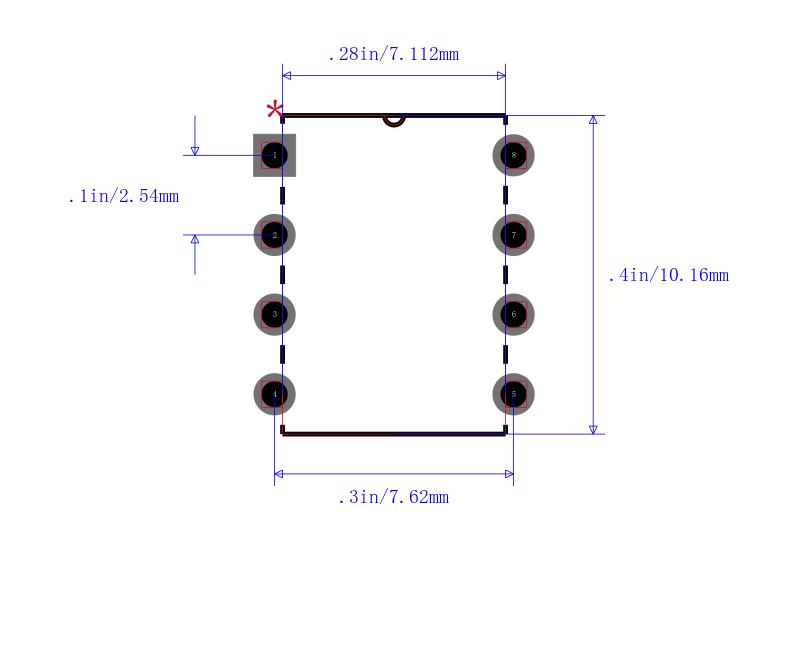

Description

The LT1013x devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature coefficient.

The LT1013x devices can be operated from a single 5-V power supply; the common-mode input voltage range includes ground, and the output can also swing to within a few millivolts of ground. Crossover distortion is eliminated. The LT1013x can be operated with both dual ± 15-V and single 5-V supplies.

The LT1013C and LT1013D are characterized for operation from 0°C to 70°C. The LT1013DI is characterized for operation from −40°C to 105°C. The LT1013M, LT1013AM, and LT1013DM are characterized for operation over the full military temperature range of −55°C to 125°C.

Features

• Single-Supply Operation

   – Input Voltage Range Extends to Ground

   – Output Swings to Ground While Sinking Current

• Phase Reversal Protection

• Input Offset Voltage

   – 150 µV Maximum at 25°C for LT1013AM

• Offset-Voltage Temperature Coefficient

   – 2 µV/°C Maximum for LT1013AM

• Input Offset Current

   – 0.8 nA Maximum at 25°C for LT1013AM

• High Gain

   – 1.5 V/µV Minimum RL = 2 kΩ for LT1013AM

   – 0.8 V/µV Minimum RL = 600 kΩ for LT1013AM

• Low Supply Current

   – 0.5 mA Maximum at TA = 25°C for LT1013AM

• Low Peak-to-Peak Noise Voltage

   – 0.55 µV Typical

• Low Current Noise

   – 0.07 pA/√Hz Typical

• For Die Only Option, See LT1013-DIE

Applications

• Thermocouple Amplifiers

• Low-Side Current Measurement

• Instrumentation Amplifiers
