5962-87609012A

5962-87609012A

TI 德州仪器 主动器件

六路反向器 HEX INVERTERS

description/ordering information

The ‘AC04 devices contain six independent inverters. The devices perform the Boolean function Y = A.

2-V to 6-V VCCOperation

Inputs Accept Voltages to 6 V

Max tpdof 7 ns at 5 V


艾睿:
The 5962-87609012A inverting Schmitt trigger, developed by Texas Instruments, is a great device for removing noise from an analog signal. This inverting Schmitt trigger has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.


安富利:
Inverter 6-Element CMOS 20-Pin LCCC Tube


Chip1Stop:
Inverter 6-Element CMOS 20-Pin CLLCC Tube


Verical:
Inverter 6-Element CMOS 20-Pin CLLCC Tube


5962-87609012A中文资料参数规格
技术参数

电源电压DC 2.00V ~ 6.00V

位数 6

电压波节 5.00 V, 3.30 V

逻辑门个数 6

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 20

封装 LCCC

外形尺寸

封装 LCCC

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

5962-87609012A引脚图与封装图

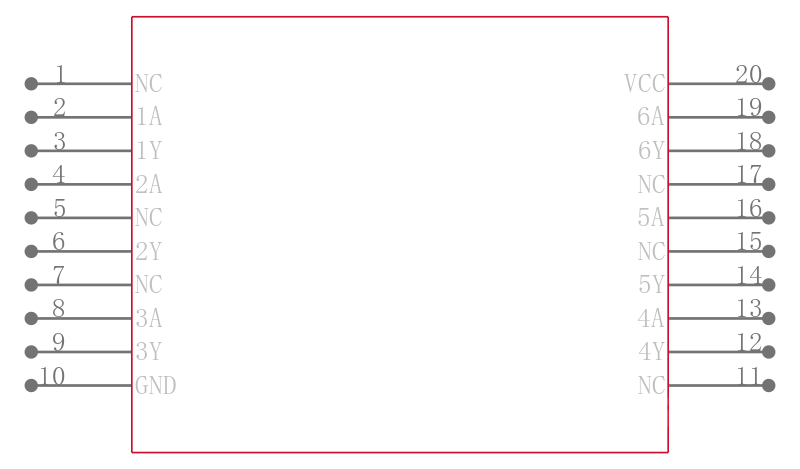

5962-87609012A引脚图

5962-87609012A引脚图

5962-87609012A封装图

5962-87609012A封装图

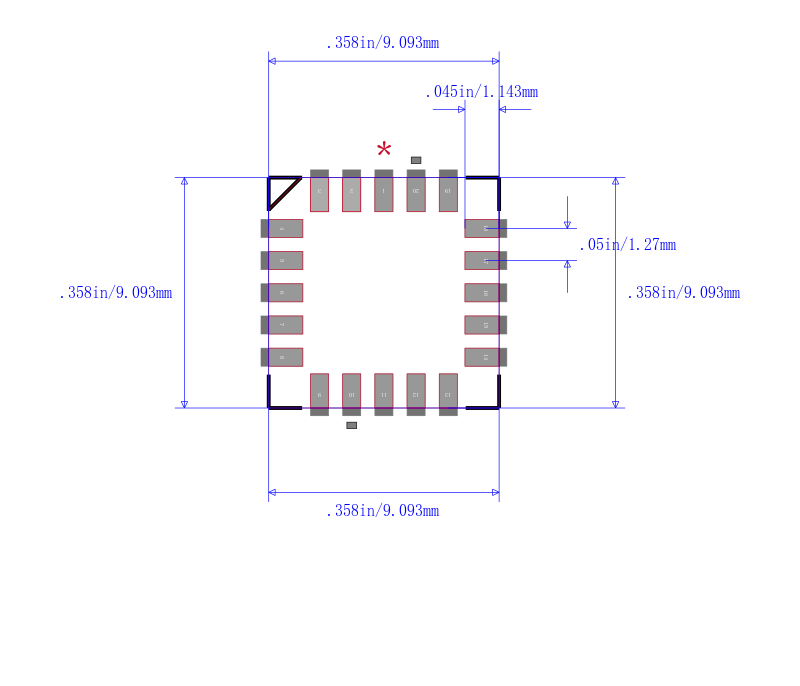

5962-87609012A封装焊盘图

5962-87609012A封装焊盘图
