5962-8984401CA

高速CMOS逻辑四路2输入异或门 High-Speed CMOS Logic Quad 2-Input EXCLUSIVE-OR Gate

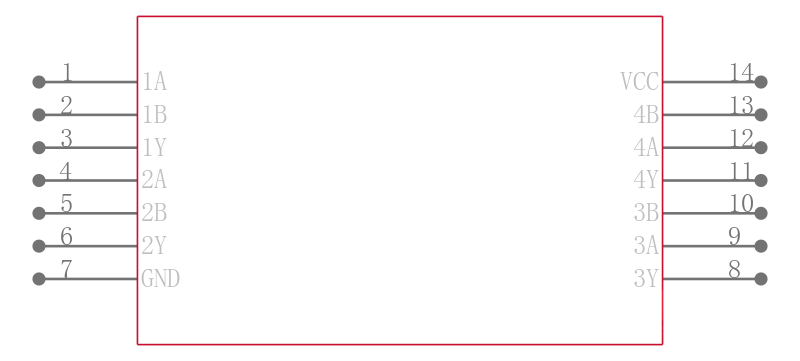

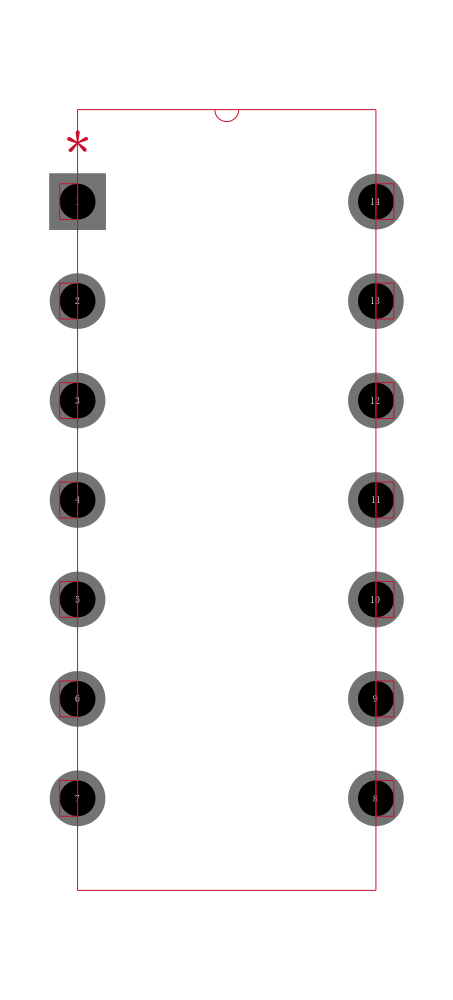

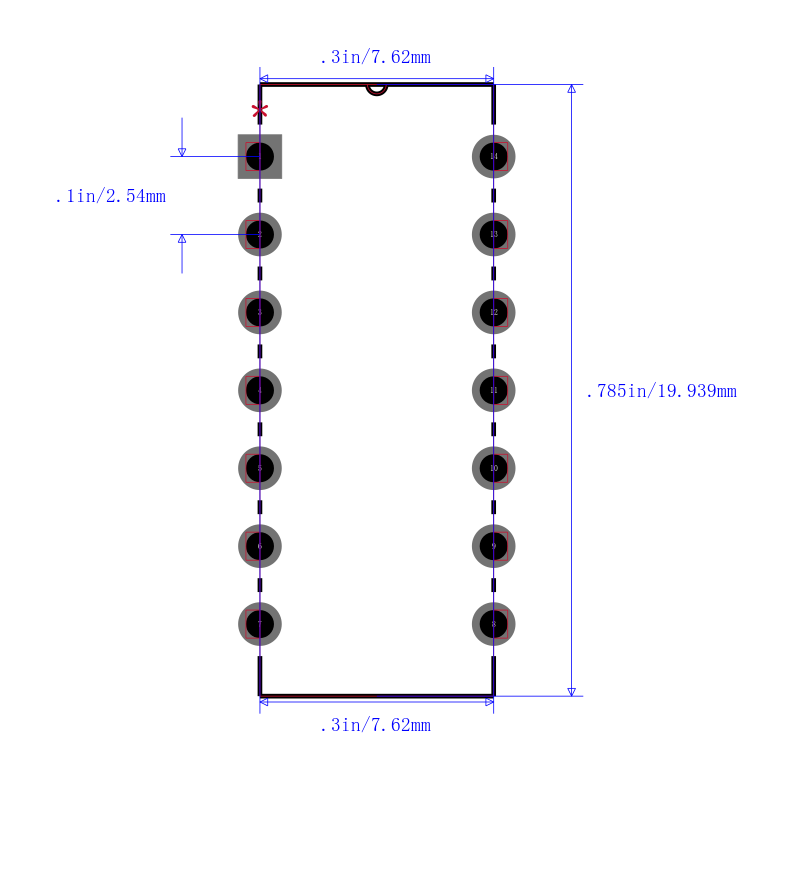

Description

The ’HC86 and ’HCT86 contain four independent EXCLUSIVE OR gates in one package. They provide the system designer with a means for implementation of the EXCLUSIVE OR function. Logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.

Features

• Typical Propagation Delay: 9ns at VCC= 5V, CL= 15pF, TA= 25℃

• Fanout Over Temperature Range

  - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads

  - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads

• Wide Operating Temperature Range . . . -55℃ to 125℃

• Balanced Propagation Delay and Transition Times

• Significant Power Reduction Compared to LSTTL Logic ICs

• HC Types

  - 2V to 6V Operation

  - High Noise Immunity: NIL= 30%, NIH= 30% of VCC at VCC= 5V

• HCT Types

\- 4.5V to 5.5V Operation

\- Direct LSTTL Input Logic Compatibility, VIL= 0.8V Max, VIH = 2V Min

\- CMOS Input Compatibility, Il ≤1µA at VOL, VOH

Applications

• Logical Comparators

• Parity Generators and Checkers

• Adders and Subtractors
