5962-89710023X

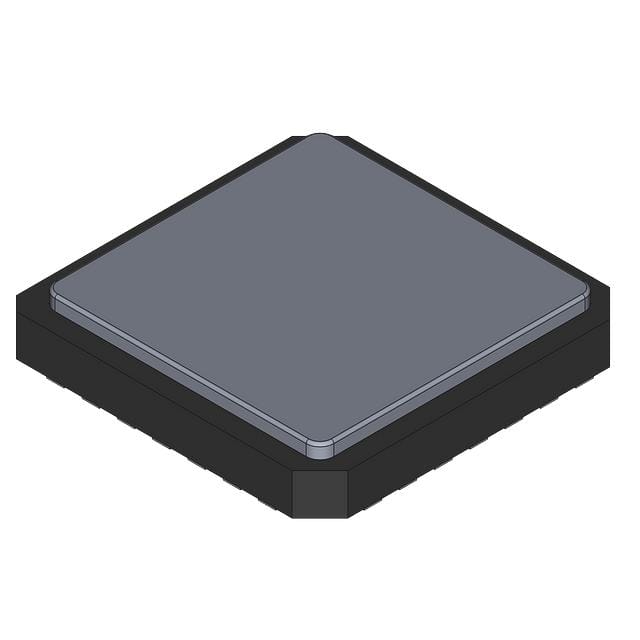

Analog Multiplexer Dual 8:1 28Pin CLCC Tube

Product Details

The ADG526A and ADG527A are CMOS monolithic analog multiplexers with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG526A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG527A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.

The ADG526A and ADG527A are designed on an enhanced LC2MOS process that gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching speeds and low RON.

**Applications**

.

Data acquisition systems

.

Communication systems

.

Automatic test equipment

.

Microprocessor controlled systems

### Features and Benefits

.

44 V Supply Maximum Ratings

.

VSS to VDD Analog Signal Range

.

Single/Dual Supply Specifications

.

Wide Supply Range 10.8 V to 16.5 V

.

Microprocessor Compatible 100ns WR Pulse

.

Extended Plastic Temperature

Range -40°C to +85°C

.

Low Power Dissipation 28 µW max

.

Low Leakage 20 pA typ

.

Superior Alternative to DG526

.

Available in PDIP, CERDIP, SOIC, and PLCC packages
