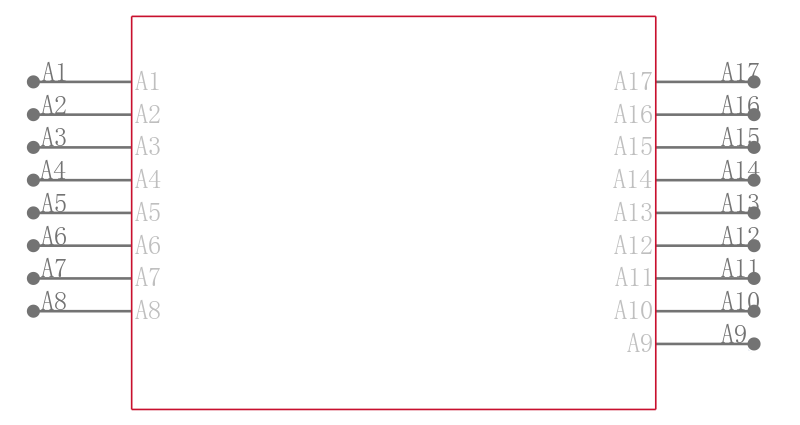

4-644456-7

Conn Unshrouded Header HDR 17POS 2.54mm Solder ST Thru-Hole

* Straight Posts Without Retentive Legs * Standard UL94V-0, Tin Plated * Connectors and headers for 2 through 28 positions; wire sizes of 22, 24, 26 and 28 AWG [0.4-0.08 mm2] * Wire-to-Post Connectors preloaded with dual beam contacts * Connectors and headers, except shrouded headers, are end-to-end stackable * Connector styles include both closed end and feedthru connectors with locking ramps, with and without polarizing tabs * Molded ribs on housing do not allow reverse mating * Posted connectors for 2 through 19 positions * Connectors preloaded with IDC contacts * All contacts are slotted for insulation displacement IDC terminal technique * Contacts are lubricated for fretting corrosion protection * Benefits derived from the MTA-100 system include increased quality and ease of handling such as * One-step assembly * No wire stripping * Reduced wiring errors * Simpler tooling * Simple maintenance and repair * Recognized under the Component Program of Underwriters Laboratories Inc. * Certified by Canadian Standards Association
