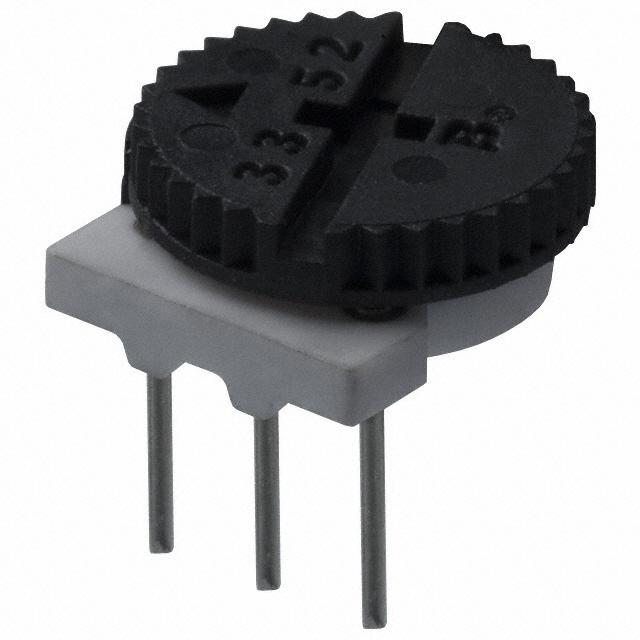

3352T-1-201LF
数据手册.pdfBOURNS 3352T-1-201LF 可调电阻, 20% 0.5W 单转
200 Ohms 0.5W, 1/2W Through Hole Thumbwheel Potentiometer Top Adjustment
贸泽:
Trimmer Resistors - Through Hole 3/8IN RND 200 OHMS 0.5watt 20%
艾睿:
Apply this 3352T-1-201LF potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 200 Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±150 ppm/°C. The 3352T-1-201LF part has a pin termination style. It has a tolerance of 20%. This product is 8.89 mm long, 3.81 mm tall and 9.53 mm deep. This part has an operating temperature of -55 to 125 °C. This device is made with cermet technology.
Chip1Stop:
Res Cermet Trimmer 200 Ohm 20% 0.5W1/2W 1Elec/1MechTurn 8.89 X 9.53 X 3.81mm Pin Thru-Hole Bag
TME:
Potentiometer: mounting; single turn, horizontal; 200Ω; 0.5W; THT
Verical:
Res Cermet Trimmer 200 Ohm 20% 0.5W1/2W 1Elec/1MechTurn 8.89 X 9.53 X 3.81mm Pin Thru-Hole Bag
Newark:
# BOURNS 3352T-1-201LF Trimmer, Single-turn, 200 ohm, 500 mW, ± 20%, 3352T Series, 1 Turns, Through Hole
MASTER:
Res Cermet Trimmer 200 Ohm 20% 0.5W1/2W 1Elec/1MechTurn 8.89 X 9.53 X 3.81mm Pin Thru-Hole Bag
Electro Sonic:
Res Cermet Trimmer 200 Ohm 20% 0.5W1/2W 1Elec/1MechTurn 8.89 X 9.53 X 3.81mm Pin Thru-Hole Bag
