SML-D15YWT86C
数据手册.pdf
ROHM Semiconductor
罗姆半导体
光源与发射器
发光二极管, 0603, 黄色, SMD, 603, 20 mA, 2.1 V, 590 nm
The from ROHM is an automotive mono colour chip in 1608 0603 standard package type.
- .

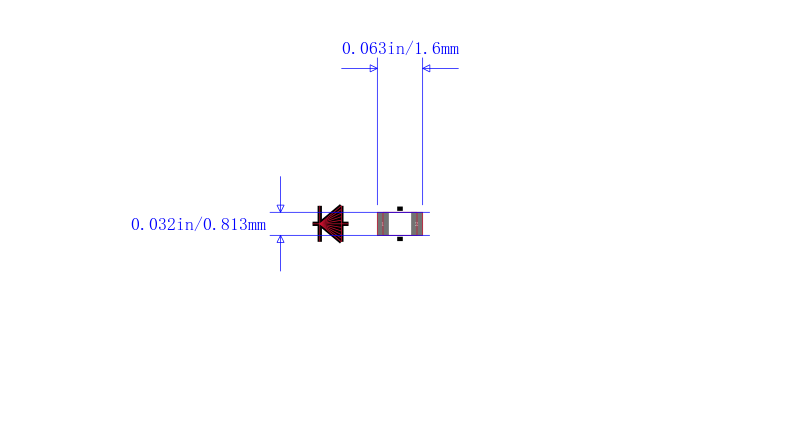

- AlGalnP chip structure, package size is 1.6mm x 0.8mm t=0.55mm
- .
- Yellow emitting colour
- .
- Power dissipation of 84mW
- .
- Operating temperature range from -40°C to 100°C
- .
- Typical forward voltage VF = 2.1V at If = 20mA
- .
- Maximum reverse current IR= 10µA at IF= 5V
- .
- Dominant wavelength is 590nm typ at IF=20mA
- .
- Luminous intensity is 224mcd typ at IF=20mA
- .
- Automotive grade AEC-Q101 qualified
- .
- Original device technology enables high brightness and high reliability
