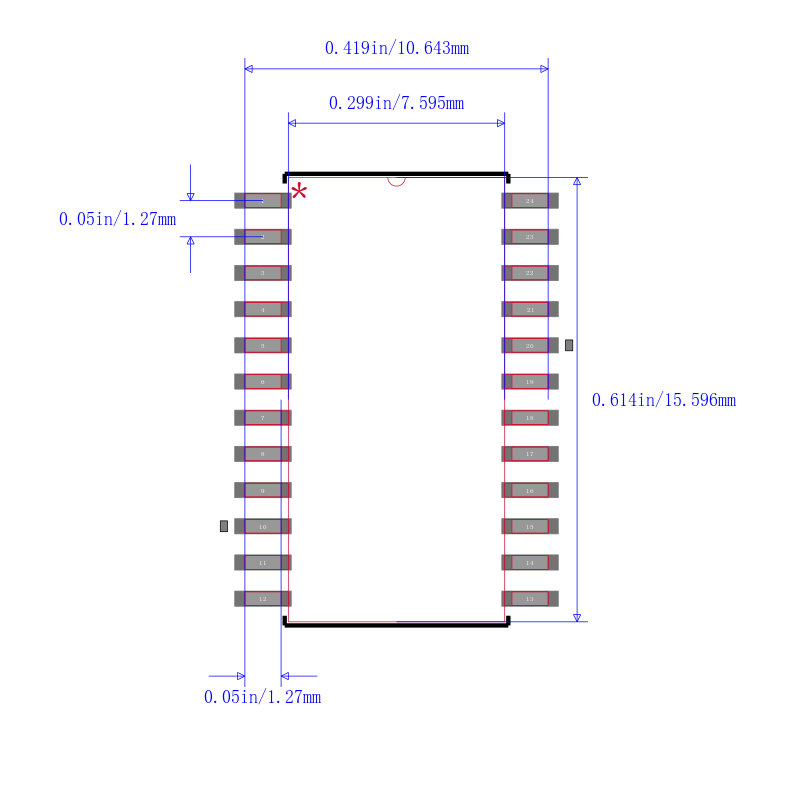

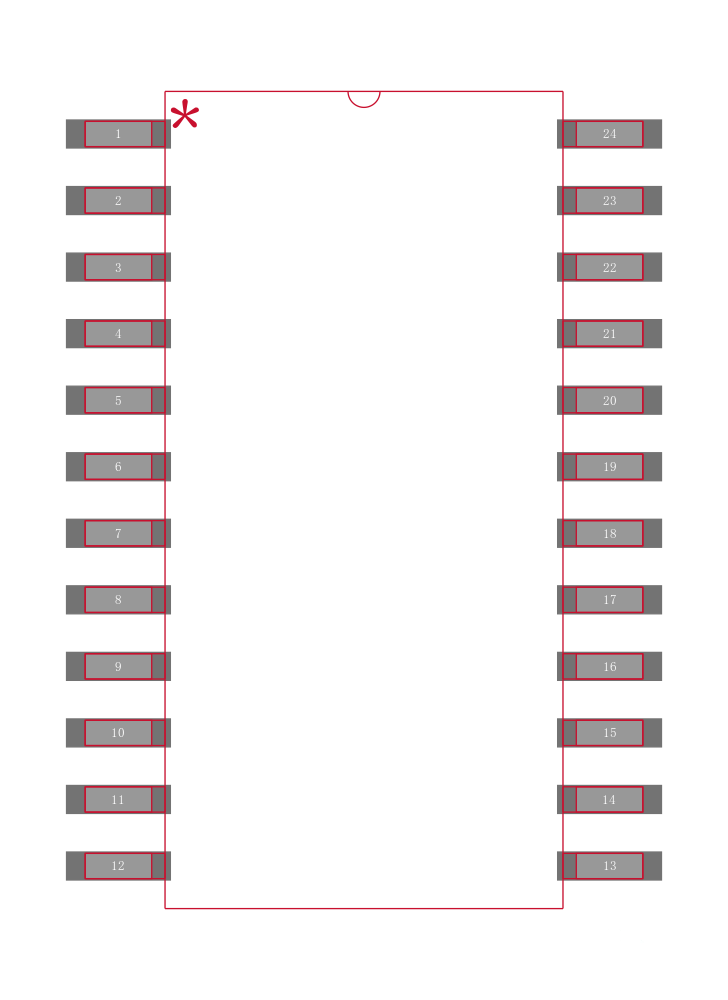

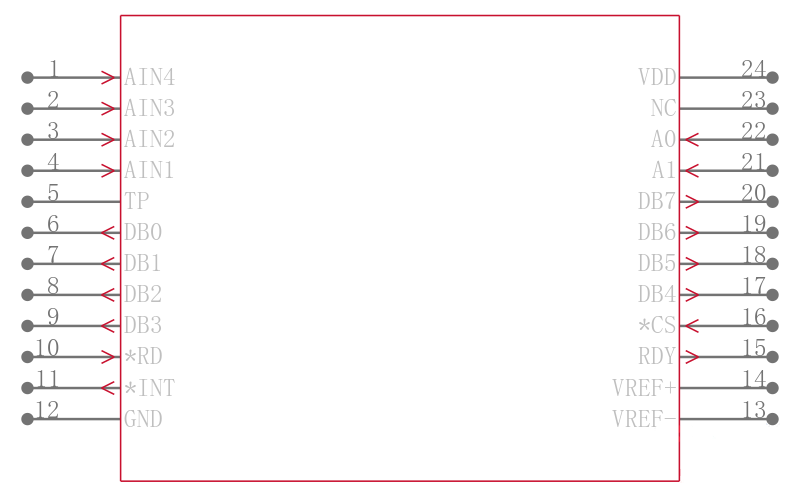

MX7824LCWG

CMOS ，高速， 8位ADC，带有多路复用器 CMOS, High-Speed, 8-Bit ADCs with Multiplexer

General Description

The MAX154/MAX158 and MX7824/MX7828 are high speed, multi-channel analog-to-digital converters ADCs. The MAX154 and MX7824 have four analog input channels, while the MAX158 and MX7828 have eight channels. Conversion time for all devices is 2.5µs. The MAX154/MAX158 also feature a 2.5V on-chip reference, forming a complete high-speed data acquisition system.

All four converters include a built-in track/hold, eliminating the need for an external track/hold with many input signals. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply.

Features

♦ One-Chip Data Acquisition System

♦ Four or Eight Analog Input Channels

♦ 2.5µs per Channel Conversion Time

♦ Internal 2.5V Reference MAX154/MAX158 only

♦ Built-In Track/Hold Function

♦ 1/2LSB Error Specification

♦ Single +5V Supply Operation

♦ No External Clock

♦ New Space-Saving SSOP Package

Applications

  Digital Signal Processing

  High-Speed Data Acquisition

  Telecommunications

  High-Speed Servo Control

  Audio Instrumentation
