MAX17435ETG+

MAXIM INTEGRATED PRODUCTS  MAX17435ETG+  芯片, 电池充电器

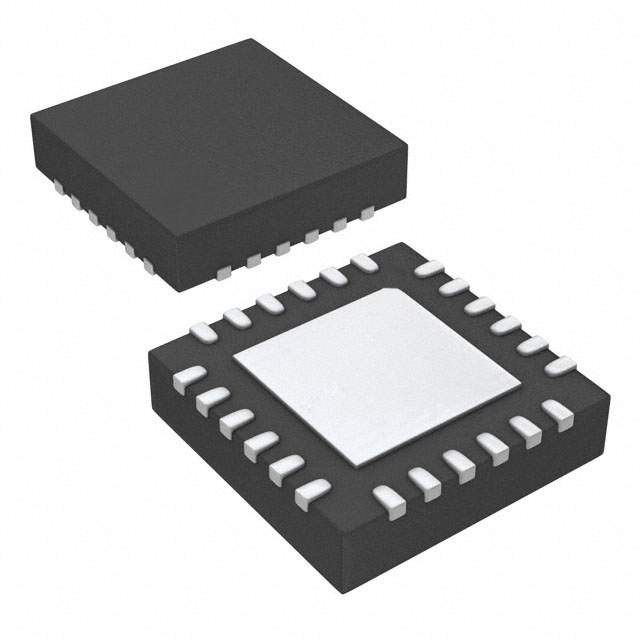

The is a high frequency, low-cost SMBus battery charger in 24 pin TQFN package. This device is an integrated multichemistry battery charger IC which simplifies construction of accurate and efficient chargers. It provide SMBus-programmable charge current, charge voltage, input current limit, relearn voltage and digital readback of the IINP voltage. The device charges 2, 3, or 4 lithium-ion Li+ cells in series, charge current and input current-limit sense amplifiers have low offset errors, fixed-inductor ripple architecture significantly reduces component size and circuit cost.

.

Maximum charge current of 7A

.

High switching frequency 0.85MHz/0.5MHz

.

Internal boost switches

.

Single point compensation

.

Automatic selection of system power source

.

Monitor outputs for AC adapter current, battery discharge current, AC adapter presence

.

AC adapter overvoltage protection

.

11bit battery voltage setting, 6bit charge current setting

.

Improved INP accuracy at low input current

.

Operating temperature range from -40°C to 85°C
