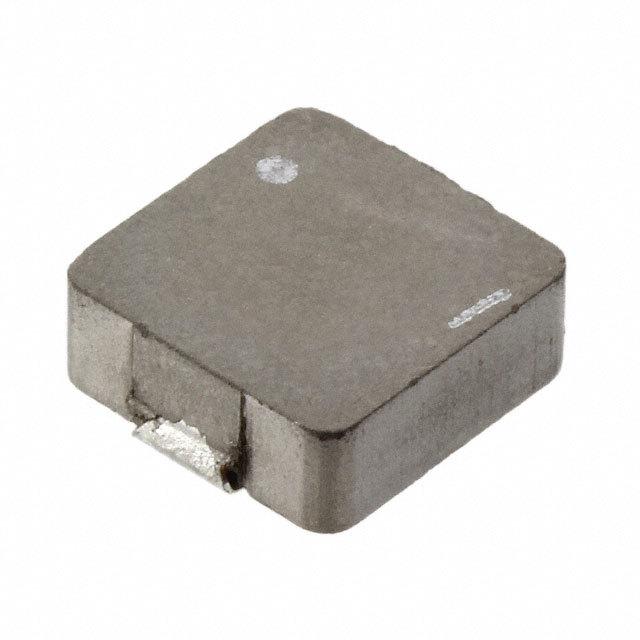

MPC1040LR36C

MPC1040LR36C

数据手册.pdf

4040 360nH ±20% 25.5A

The MPC series Metal Composite Inductor designed for use in power supplies with high ripple current. The large-current power inductors offer superior saturation current when compared to technologies based on ferrite cores. Their low height makes them ideal in applications with thin profile requirements. The flat wire used in the design of the MPC series enables high ripple current carrying capabilities. It is suitable for switching DC-DC power supplies, DVD and BluRay players.


得捷:
FIXED IND 360NH 25.5A 1.05 MOHM


艾睿:
Large Current Choke Coil Wirewound 360nH 20% 100KHz Ferrite 25.5A 1.05mOhm DCR 4040 T/R


安富利:
Ind Power Wirewound 360nH 20% 100KHz Ferrite 25.5A T/R


Verical:
Large Current Choke Coil Wirewound 0.36uH 20% 100KHz Ferrite 25.5A 0.00105Ohm DCR 4040 T/R


Win Source:
FIXED IND 360NH 25.5A 1.05 MOHM


MPC1040LR36C中文资料参数规格
技术参数

额定电流 25.5 A

容差 ±20 %

电感 360 nH

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤1.05 mΩ

工作温度Max 120 ℃

工作温度Min -20 ℃

电阻DC Max 0.00105 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD-2

外形尺寸

长度 11.5 mm

宽度 10 mm

高度 4 mm

封装 SMD-2

物理参数

工作温度 -20℃ ~ 120℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

MPC1040LR36C引脚图与封装图
暂无图片
在线购买MPC1040LR36C
型号 制造商 描述 购买
MPC1040LR36C KEMET Corporation 基美 4040 360nH ±20% 25.5A 搜索库存
