MAXIM INTEGRATED PRODUCTS MAX4200EUK+T 缓冲放大器, 超高速, 1 放大器, 660 MHz, 4200 V/µs, ± 4V 至 ± 5.5V, SOT-23, 5 引脚

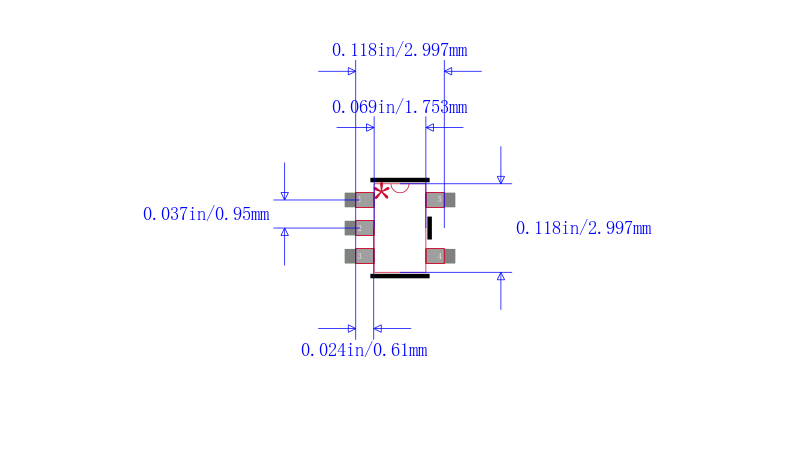

The is an ultra high-speed, low noise, open loop buffer in 5 pin SOT-23 package. This low power single buffer has high slew rate, high output current, excellent capacitive load driving capability and have no internal termination resistors. It uses a proprietary architecture to achieve up to 660MHz -3dB bandwidth, 220MHz 0.1dB gain flatness and 4200V/µs slew rate. The low-noise performance makes this buffer suitable for driving high-speed analogue to digital converter ADC inputs. This device is used in high-speed DAC buffers, high-speed ADC input buffers, digital transmission line drivers and wireless LANs.
- .
- Supply voltage range is ±4V to ±5.5V
- .
- Operating temperature range from -40°C to 85°C
- .
- Quiescent supply current is 2.2mA
- .
- Bandwidth for 0.1dB gain flatness is 50MHz
- .
- Low current-noise density of 0.8pA/√Hz
- .
- Excellent capacitive-load-driving capability
- .
- Power supply rejection is 72dB
- .
- Differential gain error of 1.3% at RL = 150 ohm
- .
- Differential phase error of 0.15° at RL = 150 ohm
- .
- High output drive of ±90mA
