ELL-6SH471M
数据手册.pdfPower Choke Shielded Wirewound 470uH 20% 100kHz 270mA 1.68Ω DCR T/R
470 µH 屏蔽 绕线 器 200 mA 3.2 欧姆 非标准
得捷:
FIXED IND 470UH 200MA 3.2OHM SMD
贸泽:
Fixed Inductors 470uH 20% 200mA 3.2ohm
艾睿:

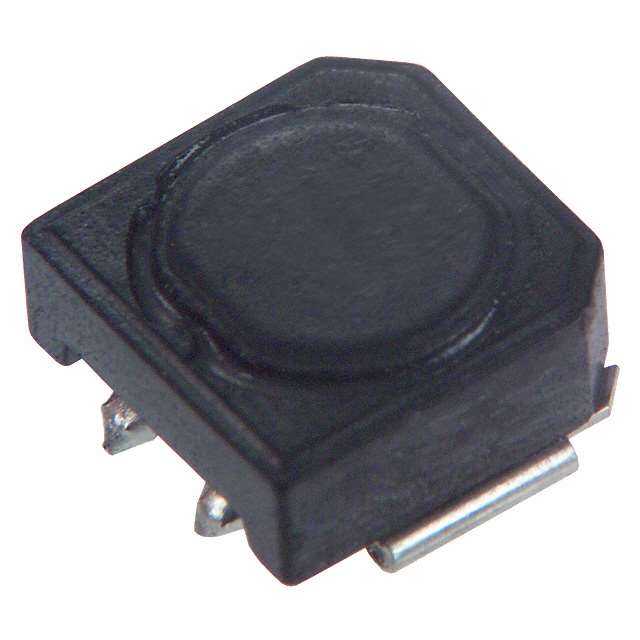

Save valuable space on a PCB with this power choke ELL-6SH471M surface mount inductor from Panasonic. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 270m A with a maximum resistance of 1.68 Ohm. This device utilizes wirewound technology. Its test frequency is 100K Hz. It has an inductance of 470u H. This product is 6.9 mm long, 3.3 mm tall and 6.5 mm deep.
Chip1Stop:
Power Choke Shielded Wirewound 470uH 20% 100KHz 270mA 1.68Ohm DCR Embossed Carrier T/R
Verical:
Power Choke Shielded Wirewound 470uH 20% 100KHz 0.27A 1.68Ohm DCR T/R
MASTER:
Power Choke Shielded Wirewound 470uH 20% 100KHz 0.27A 1.68Ohm DCR T/R
Electro Sonic:
Power Choke Shielded Wirewound 470uH 20% 100KHz 0.27A 1.68Ohm DCR T/R
Win Source:
470μH Shielded Wirewound Inductor 200mA 3.2 Ohm Nonstandard
