AD544SH/883B
数据手册.pdf
ADI
亚德诺
电子元器件分类

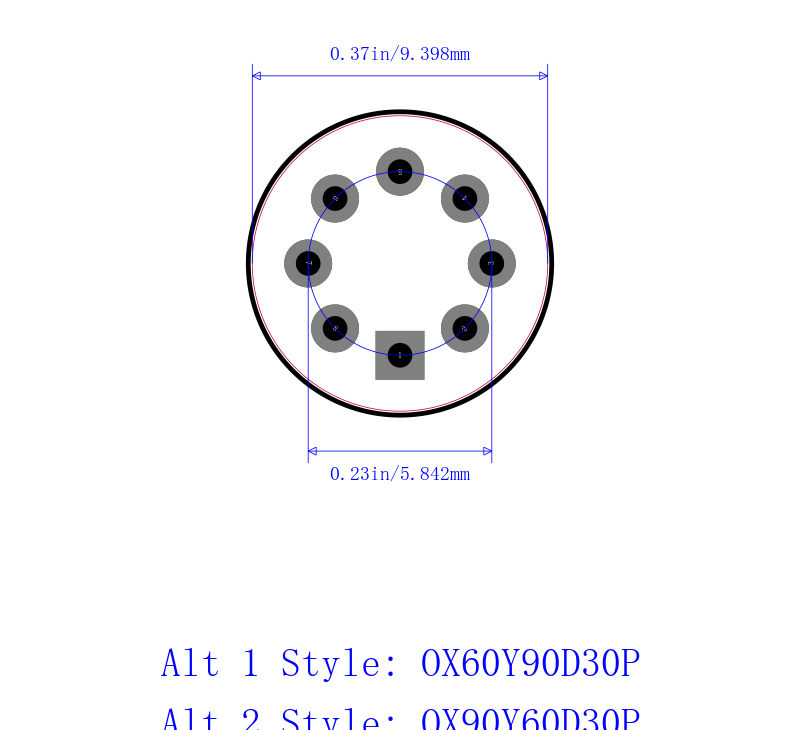

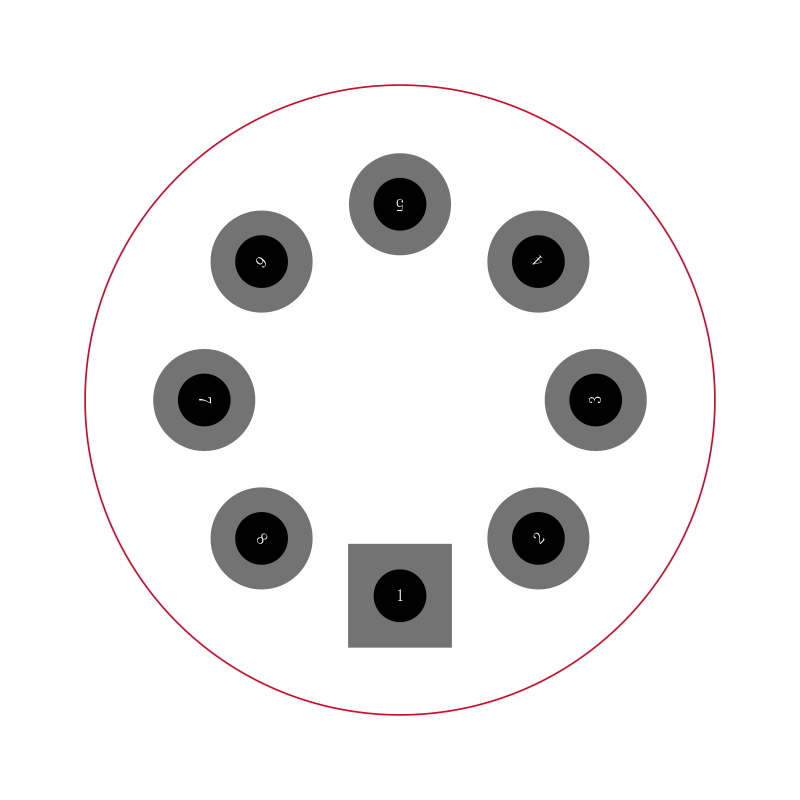

OP Amp Single GP 18V 8Pin TO-99
PRODUCT DESCRIPTION
The BiFET series of precision, monolithic FET-input op ampsare fabricated with the most advanced BiFET and laser trimming technologies. The AD542, AD544, AD547 series offers bias currents significantly lower than currently available BiFET devices, 25 pA max, warmed up.
FEATURES
Ultralow Drift: 1 mV/8C AD547L
Low Offset Voltage: 0.25 mV AD547L
Low Input Bias Currents: 25 pA max
Low Quiescent Current: 1.5 mA
Low Noise: 2 mV p-p
High Open Loop Gain: 110 dB
High Slew Rate: 13 V/ms
Fast Settling to 60.01%: 3 ms
Low Total Harmonic Distortion: 0.0025%
Available in Hermetic Metal Can and Die Form
MIL-STD-883B Versions Available
Dual Versions Available: AD642, AD644, AD647
