AD5516ABC-3

16通道， 12位电压输出DAC， 14位增量模式 16-Channel, 12-Bit Voltage-Output DAC with 14-Bit Increment Mode

GENERAL DESCRIPTION

The AD5516 is a 16-channel, 12-bit voltage-output DAC. The selected DAC register is written to via the 3-wire serial interface. DAC selection is accomplished via address bits A3–A0. 14-bit resolution can be achieved by fine adjustment in Increment/Decrement Mode Mode 2.

FEATURES

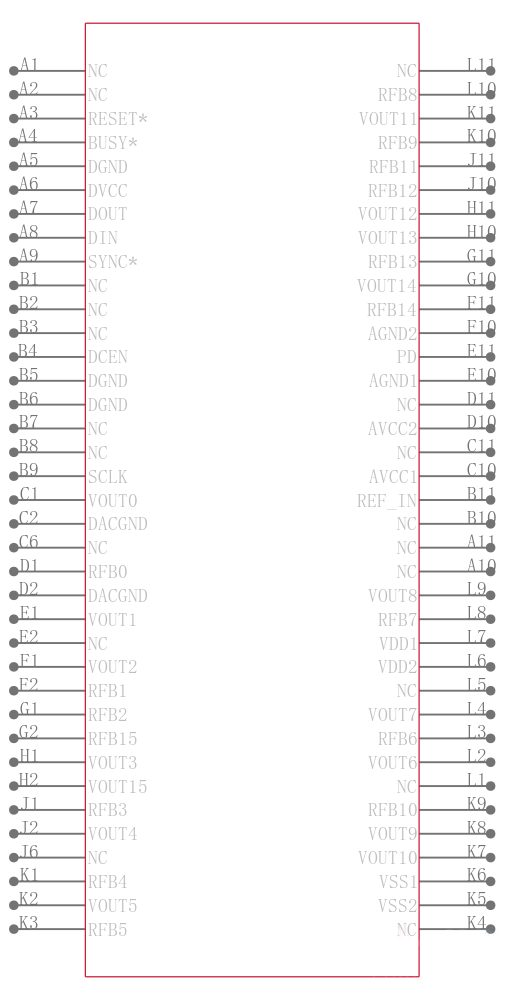

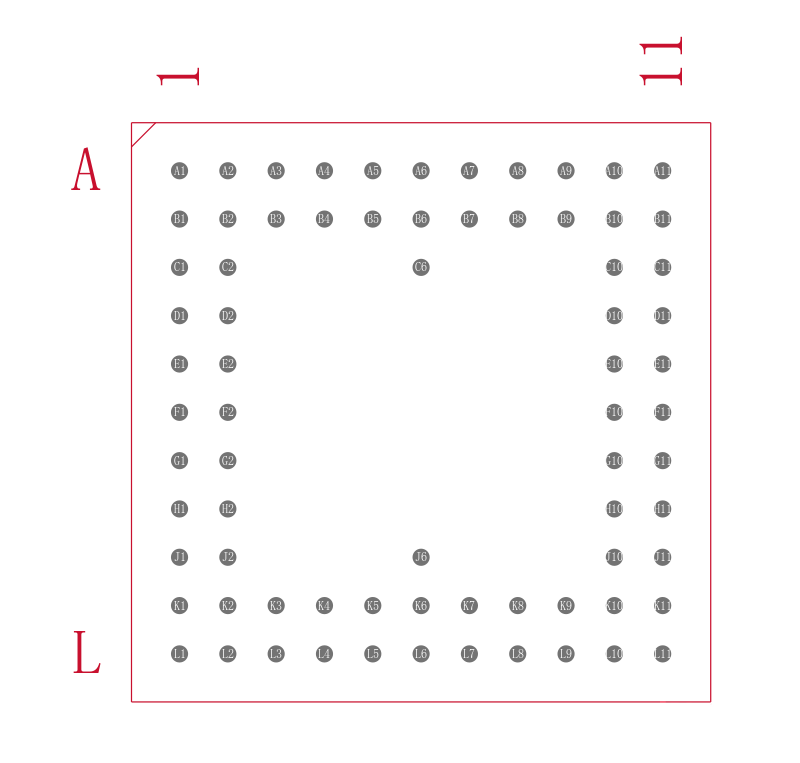

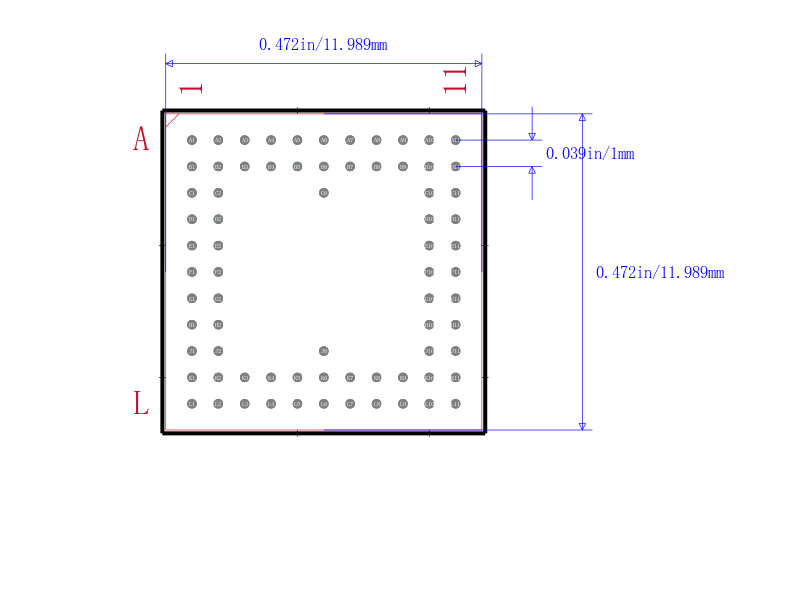

High Integration: 16-Channel DAC in 12 mm 12 mmCSPBGA

14-Bit Resolution via Increment/Decrement Mode

Guaranteed Monotonic

Low Power, SPI®, QSPI™, MICROWIRE™, and DSP Compatible 3-Wire Serial Interface

Output Impedance 0.5

Output Voltage Range

  ±2.5 V AD5516-1

  ±5 V AD5516-2

  ±10 V AD5516-3

Asynchronous Reset Facility via RESET Pin

Asynchronous Power-Down Facility via PD Pin

Daisy-Chain Mode

Temperature Range: –40C to +85C

APPLICATIONS

Level Setting

Instrumentation

Automatic Test Equipment

Optical Networks

Industrial Control Systems

Data Acquisition

Low Cost I/O
