2EDL05I06PJXUMA1

INFINEON  2EDL05I06PJXUMA1  IGBT GATE DRIVER, HALF BRIDGE, DSO-14 新

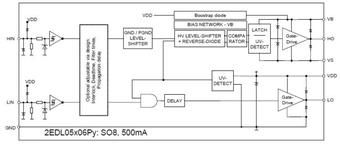

The is an EiceDRIVER compact 600V half bridge gate drive IC in 14 pin DSO package. It has an individual control circuits for both outputs, filtered detection of under voltage supply and all inputs clamped by diodes. It also features off line gate clamping function, asymmetric undervoltage lockout thresholds for high side and low side, insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology and ultra fast bootstrap diode. Typical applications include home appliances, consumer electronics, fans, pumps and general purpose drives.

.

Supply voltage is 13V to 17.5V

.

Output current is 1.5A

.

Target transistor is IGBT

.

LS UVLO thresholds is 12.5V / 11.6V

.

Dead time, interlock

.

Operating temperature range from -40°C to 95°C
