WAGO 2716-105 接线端子块, PCB, 5路, 16-6AWG
The from Wago is a gray colour, 5 pole CAGE CLAMP PCB terminal block with operating lever. It is a high current PCB terminal strip with lever-actuated CAGE CLAMP. This PCB terminal block is compatible to high current, screw-type PCB terminal blocks. It has CCA, CSA, KEMA and cURus Underwriters Laboratories Inc approvals.
- .
- 320V rated voltage III/3, 4KV rated impulse voltage III/3 and 76A rated current
- .

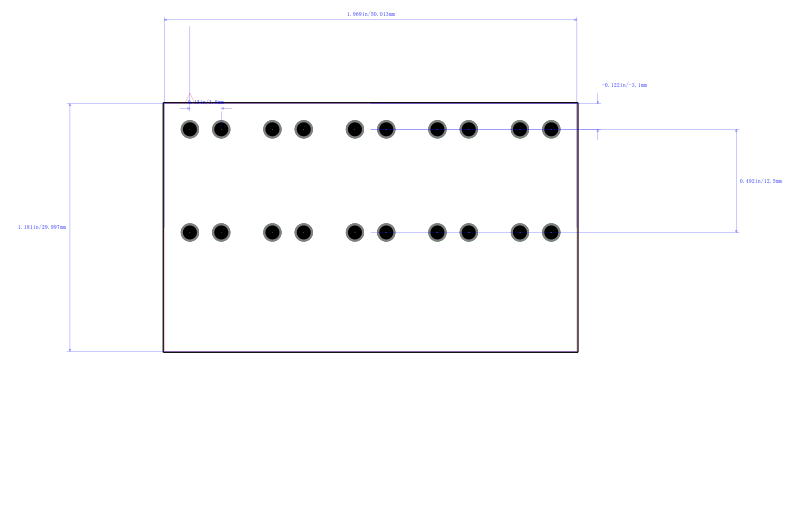

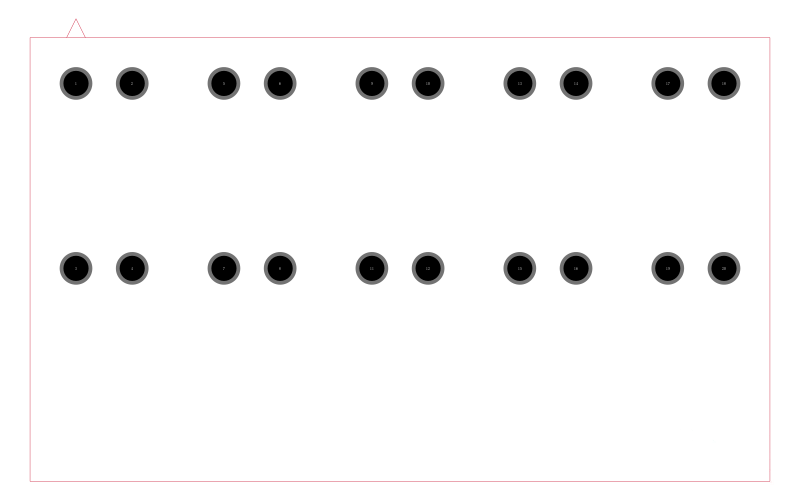

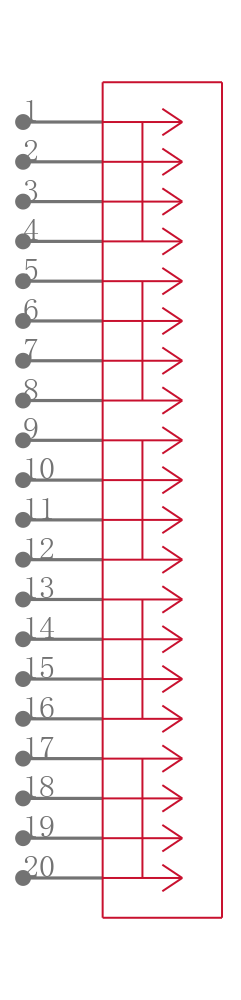

- Pin spacing is 10mm, four solder pins per contact point for high mechanical stability
- .
- 1.5mm² to 16mm² 16AWG to 6AWG solid conductors tool operated termination
- .
- 1.5mm² to 16mm² 16AWG to 6AWG fine stranded tool operated termination
- .
- Strip length is 12mm to 13mm
- .
- Conductor entry angle is 30° to PCB
- .
- Solder pin length/width is 4.5mm / 0.95mm x 1.2mm
- .
- Insulating material is polyamide 66 PA 66, flammability rating per UL 94 V0
- .
- Clamping spring material is chrome nickel spring steel CrNi
- .
- Contact material electrolytic copper Ecu and contact plating is tin
