282836-4

TE CONNECTIVITY / BUCHANAN  282836-4  线至板接线端子, 4 路, 300 V, 13.5 A, 30 AWG, 16 AWG, 1.4 mm²

5.0mm TERMI-BLOK 系列薄型印刷电路板端子块，带互锁

TERMI-BLOK 系列薄型印刷电路板安装端子块，带 5mm 中心线，侧线接入和 M3 螺旋夹端子，可接受 30 至 16 AWG 电线尺寸范围。 这些 5.0mm 薄型印刷电路板端子块具有联锁功能、测试功能，并由绿色聚酰胺 6.6 GF 制成

上升钳位

接受长达 1.5mm 实心线 13.5A 最大

包含测试探头接入

UL 94 V-0 等级聚酰胺 6 / 6 外壳

### 认可

UL 文件编号 E60677、CSA 文件编号 LR7189

得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB

欧时:
TE Connectivity Buchanan 系列 5mm 节距 4 路 绿色 直向 印刷电路板接线端子块 282836-4, 通孔

立创商城:
282836-4

艾睿:

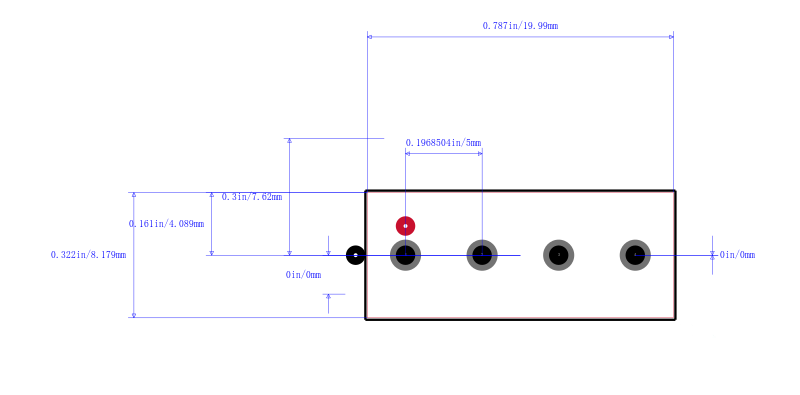

Know that you will have strong connections between circuits when you use TE Connectivity&s;s eurostyle block 282836-4 PCB terminal block. Its pitch is 5 mm. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This device has a maximum current rating of 13.5 A/contact. 282836-4 is housed in polyamide 6/6. This product is 20 mm long, 10 mm tall and 8.2 mm deep. Its wire is 16-30 AWG. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; Wire Receptacle; 4; 5 mm; 30-16 AWG; Green; 13.5 A; 300 V

Chip1Stop:
Conn Terminal Block 4 POS 5mm Solder ST Thru-Hole 13.5A/Contact

TME:
PCB terminal block; angled 90°; 5mm; ways:4; on PCBs; 0.03÷1.5mm2

Verical:
Conn Eurostyle Block HDR 4 POS 5mm Solder ST Thru-Hole 13.5A/Contact

MASTER:
TERMINAL BLOCK, PCB MOUNT, SIDE WIRE ENTRY, STACKING

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB MOUNT 90 4P.

Electro Sonic:
TERMI-BLOK PCB MOUNT 90 4P.
