WAGO
连接器与适配器
WAGO 236-408 线至板接线端子, 8 路, 320 V, 24 A, 28 AWG, 12 AWG, 2.5 mm²
The is a 8-pole grey PCB Terminal Strip with front/side-entry wiring. This terminal strip has tin-plated electrolytic copper contacts and a polyamide 6.6 insulator. It accepts 28 to 12AWG wire size.
- .
- Cage Clamp® connection method
- .
- Operating tools for factory wiring
- .
- 45° Connection angle permits a wide range of uses and wiring options
- .
- UL94V-0 Flammability rating
- .
- Limit temperature range from -60°C to 105°C
- .
- Weight is 7g, rated voltage III/2 is 320V and nominal current of 24A
- .
- Flammability rating meets UL94 V-0 and meets IEC/EN 60664-1 specifications
- .
- Suitable for wire size ranging from 28AWG to 12AWG
- .

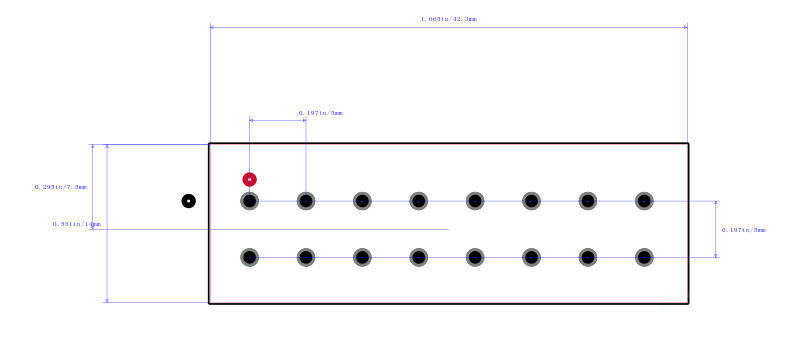

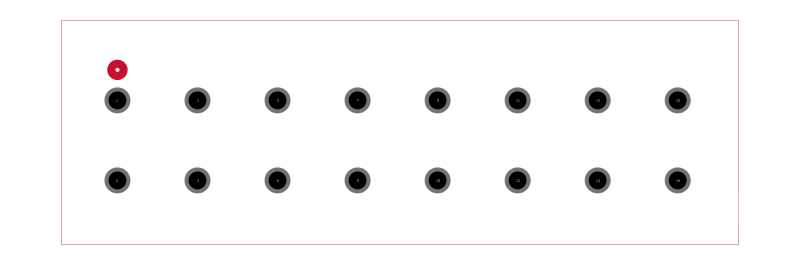

- Two in-line solder pins/pole
