2981499

Multi-application Modular System - PSR-SPP SeriesThis can be quickly and reliably assembled to form a tailor-made safety solution. To connect using TBUS correctly you will need one PSR-TBUS per module. For the last additional module use one PSR-TBUS-TP instead, this will close the feedback loop. The interface module is used for the connection of up to four safety sensors with NC/NO contacts to the safety relay PSR-SDC4, with screw connection. Quick system extension up to 10 modules, offering a safety system with up to 42 contacts Automatic identification of desired operating mode, no need to set switches or define parameters The system is based on a master relay PSR-SDC that monitors e-stops, guard doors interlock or non-contact and optical devices e.g. light curtains Safe cross-wiring with T-BUS renders the usual cross-wiring of supply voltage, enable signal and confirmation path redundant. Making commissioning and future expansion simple 24Vdc supply voltage Semiconductor output Depending on the wiring Safety category 2 or 4 can be maintained One or Two channel switches are used for control Note: The device has a rear interface for the DIN Rail connector T-BUS. Via this T-BUS interface extension devices PSR-URM4-B undelayed contacts and PSR-URD drop-out delay contacts can be controlled and monitored over one channel. These in combination form a T-BUS unit, the feedback path must be connected to the final right hand extension device see datasheet for more details or by using connection plug PSR-TBUS-TP ### 可配置安全继电器

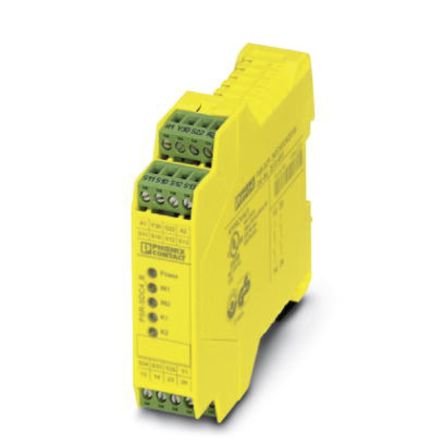

**Multi-application Modular System - PSR-SPP Series**

This can be quickly and reliably assembled to form a tailor-made safety solution. To connect using TBUS correctly you will need one PSR-TBUS per module. For the last additional module use one PSR-TBUS-TP instead, this will close the feedback loop. The interface module is used for the connection of up to four safety sensors with NC/NO contacts to the safety relay PSR-SDC4, with screw connection.

欧时:
Phoenix Contact PSR-SPP 系列 单或双通道 安全继电器 2981499, 24 V 直流电源, 2 安全触点

立创商城:
安全继电器 PSR-SPP-24DC/SDC4/2X1/B

得捷:
RELAY SAFETY DPST 6A 24V

艾睿:
Electromechanical Relay 24VDC 342.86Ohm 6NOA SPST-NO/SPST-NC/DPST-NO 22.5x114.5x112mm Plug-In Safety Relay

Allied Electronics:
Safety Relay; 22.5mm; Pluggable SpringCgeTerm Blks; 1/2 NC/1NO or 1NC/1NO; 24VDC

Verical:
Electromechanical Relay 24VDC 342.86Ohm 6NOA DPST-NO22.5x114.5x112mm DIN Rail Safety Relay

MASTER:
Safety relay for emergency stop - safety door - and magnetic switches - as well as light grids - up to SIL 3 or Cat. 4 - PL e in accordance with EN ISO 13849 - 2 N/O contacts - TBUS interface - automatic or manual activation - pluggable Push-in terminal b

Online Components:
Electromechanical Relay 24VDC 342.86Ohm 6NOA SPST-NO/SPST-NC/DPST-NO22.5x114.5x112mm Plug-In Safety Relay

Electro Sonic:
Safety relay for emergency stop - safety door - and magnetic switches - as well as light grids - up ...
