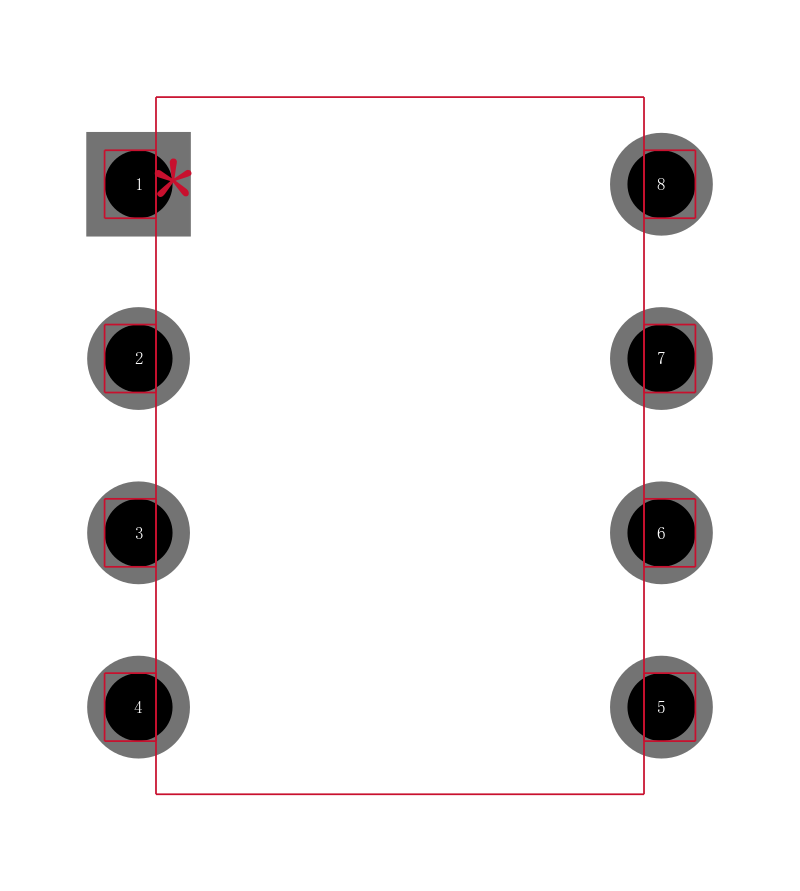

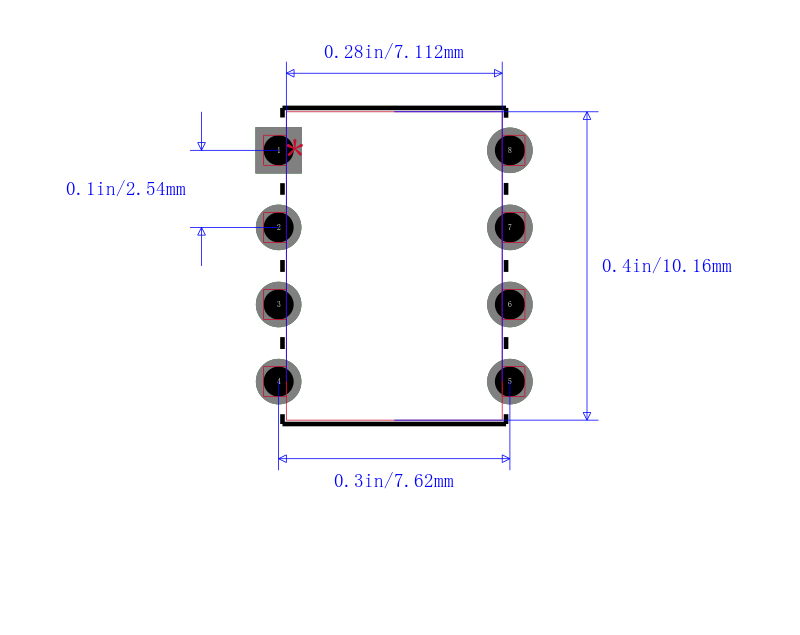

MICROCHIP 25C320/P 存储芯片, EEPROM, 32K, SPI, 3MHZ, DIP-8
The Technology Inc. 25AA320/25LC320/25C320 25XX320- .

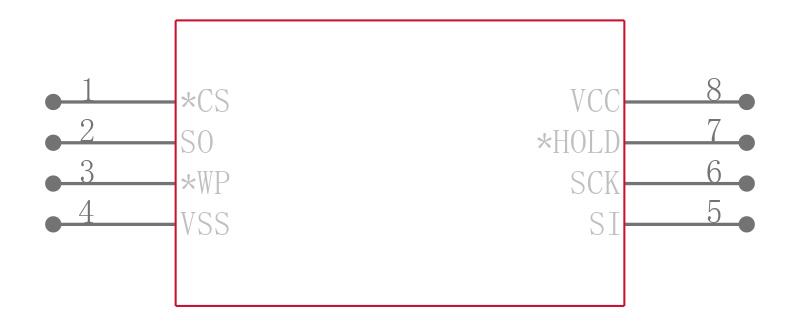

- are 32 Kbit serial Electrically Erasable PROMs. The memory is accessed via a simple Serial Peripheral Interface SPIÖ compatible serial bus. The bus signals required are a clock input SCK plus separate data in SI and data out SO lines. Access to the device is controlled through a Chip Select CS input. Communication to the device can be paused via the hold pin HOLD. While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts.
* Page Write Mode
* Power On/Off Data Protection Circuitry
* Sequential Read Function
* HOLD Pin
* Software Enabled Block Write Protection
* Hardware Write-Protect Pin
* Supports SPI Modes 0,3
