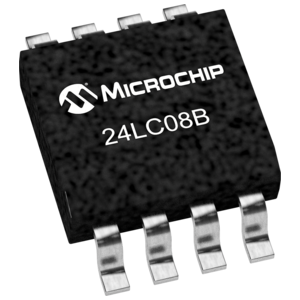

24LC08B-E/SN

8K IC串行EEPROM 8K IC SERIAL EEPROM

Description:

The Technology Inc. 24CXX, 24LCXX, 24AAXX and 24FCXX 24XX

.

devices are a family of 128-bit through 512 Kbit Electrically Erased PROMs. The devices are organized in blocks of x8-bit memory with 2-wire serial interfaces. Low-voltage design permits operation down to 1.7V for 24AAXX devices, with standby and active currents of only 1 μA and 1 mA, respectively. Devices 1 Kbit and larger have page write capability. Parts having functional address lines allow connection of up to 8 devices on the same bus. The 24XX family is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP pack ages. Most 128-bit through 16 Kbit devices are also  available in the 5-lead SOT-23 package. DFN packages 2x3mm or 5x6mm are also available. All

packages are Pb-free Matte Tin finish.

Features:

• 128-bit through 512 Kbit devices

• Single supply with operation down to 1.7V for 24AAXX devices

• Low-power CMOS technology:

\- 1 mA active current, typical

-1μA standby current, typical I-temp

• 2-wire serial interface bus, I2C™ compatible

• Schmitt Trigger inputs for noise suppression

• Output slope control to eliminate ground bounce

• 100 kHz 1.7V and 400 kHz ≥ 2.5V compatibility

• 1 MHz for 24FCXX products

• Self-timed write cycle including auto-erase

• Page write buffer

• Hardware write-protect available on most devices

• Factory programming QTP available

• ESD protection > 4,000V

• 1 million erase/write cycles

• Data retention > 200 years

• 8-lead PDIP, SOIC, TSSOP and MSOP packages

• 5-lead SOT-23 package most 1-16 Kbit devices

• 8-lead 2x3mm and 5x6mm DFN packages available

• Pb-free and RoHS compliant

• Available for extended temperature ranges:

\- Industrial I: -40°C to +85°C

\- Automotive E: -40°C to +125°C
