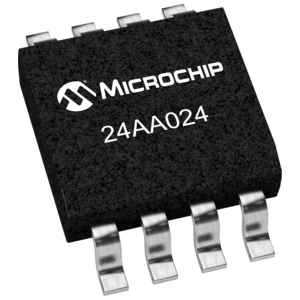

24AA024T-I/SN

2K I2C ™串行EEPROM 2K I2C⑩ Serial EEPROM

Description

The Technology Inc. 24AA024/24LC024/24AA025/24LC025 is a 2 Kbit Serial Electrically

Erasable PROM with a voltage range of 1.8V to 5.5V. The device is organized as a single block of 256 x 8-bit memory with a 2-wire serial interface.

Features

• Single supply with operation from 1.8V to 5.5V

• Low-power CMOS technology

  - 1 mA active current typical

  -1 µA standby current typical at 5.5V

• Organized as a single block of 256 bytes 256 x 8

• Hardware write protection for entire array24XX024

• 2-wire serial interface bus, I2C™ compatible

• 100 kHz and 400 kHz clock compatibility

• Page write buffer for up to 16 bytes

• Self-timed write cycle including auto-erase

• 10 ms max. write cycle time

• Address lines allow up to eight devices on bus

• 1,000,000 erase/write cycles

• ESD protection > 4,000V

• Data retention > 200 years

• 8-pin PDIP, SOIC, TSSOP and MSOP packages

• Available for extended temperature ranges

  - Industrial I: -40°C to +85°C
