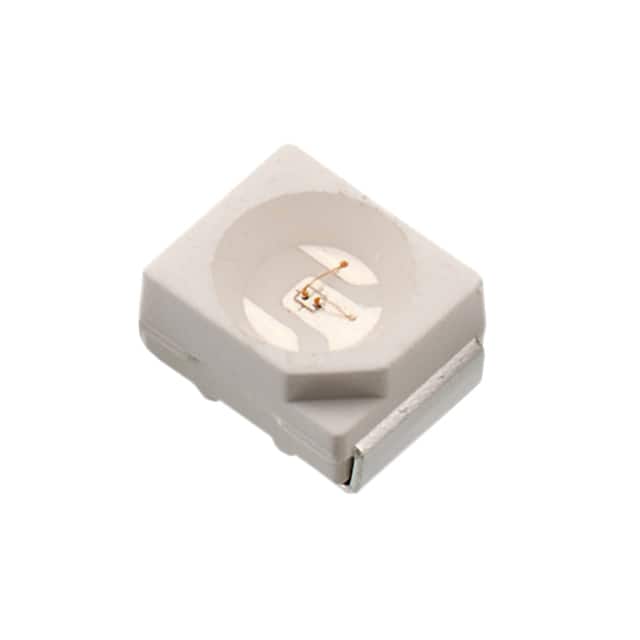

150224GS73100

发光二极管, 绿色, SMD, 20 mA, 3 V, 528 nm

The from Wurth Elektronik is a WL-SMTW SMD mono-colour waterclear top LED. This LED features low energy consumption, high reliability, low current requirement, fast switching, no UV/IR radiation, slim, miniature size and flexibility in design. It is used in signage and indirect illumination, flat lamp, indicator and backlight in automotive, telecommunication, consumer application such as dash board, telephone or A/V equipments, flat backlight for LCDs, switches and symbols, optical indicators, indoor and outdoor displays, scanner, backlight in LCD, cellular phones, switches, keys, displays, illuminated advertising, panel, lighting device such as indicator, general lighting, camera flash, hand carrier flash, coupling into light guides.

.

Peak wavelength of 519nm at 20mA

.

Dominant wavelength of 528nm at 20mA

.

InGaN chip technology, green emitting colour and waterclear lens type

.

Luminous intensity of 1200mcd at 20mA

.

Maximum forward voltage of 3.4V at 20mA

.

Spectral bandwidth of 30nm at 20mA

.

Maximum reverse voltage of 1.5V at 5mA

.

Viewing angle of 120° at 20mA

.

Operating temperature range from -40°C up to +85°C

.

Power dissipation is 102mW
