1881464

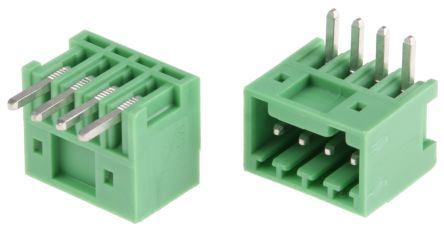

Phoenix Contact MICRO COMBICON MC 0,5 和 MCV 0,5 系列 2.5mm 印刷电路板端子块管座MICRO COMBICON MC 0,5（直角）和 MCV 0,5 系列（垂直）2.5mm 节距薄型有罩通孔安装印刷电路板端子块管座。 这些 MICRO COMBICON MC 0,5 和 MICRO COMBICON MCV 0,5 2.5mm 印刷电路板端子块管座可与 MICRO COMBICON MC 0,5 电缆安装插头连接器一起使用。闭端管座 适用于弹簧端子，例如 2 路，参见库存号 357-9470 易燃性等级 UL94 V0 适用于波焊工序 2.5 mm 节距 ### Phoenix Contact COMBICON 2.5mm 两件式端子块

Contact MICRO COMBICON MC、MCV、MCD 和 MCDV 系列 2.5mm 端子块管座

MICRO COMBICON MC（直角）、MCV（垂直）和 MCD/MCDV（双层）2.5mm 节距、薄型有罩通孔安装印刷电路板端子块管座。这些印刷电路板端子块管座可与 MICRO COMBICON MC 0,5 电缆安装插头一起使用。

### Phoenix Contact COMBICON 2.5mm 两件式端子块

得捷:
TERM BLOCK HDR 4POS 90DEG 2.5MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 4路 2.5mm节距 1排 直角 1881464, 焊接端接, 4A

立创商城:
板端/插座-闭口 2.5mm 排数:1 每排P数:4 弯针

贸泽:
Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header

艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s wire to board 1881464 header connector helps protect your equipment from accidental shortages. This HDR connector has 4 contacts that are plated with tin. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 2.5 mm. This device has a maximum current rating of 4 A. This product is 11.9 mm long, 8.1 mm tall and 10.1 mm deep. 1881464 is housed in green polyamide. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 4Pole; 2.5mmPitch; COMBICON

Verical:
Conn Wire to Board HDR 4 POS 2.5mm Solder RA Side Entry Thru-Hole Cardboard

MASTER:
PCB headers - nominal current: 4 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - number of positions: 4 - pitch: 2.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.8

Online Components:
Conn Wire to Board HDR 4 POS 2.5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 4 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
