1963421

Phoenix Contact PCB 接线端子块 COMBICON MC 系列 2路 2.5mm节距 1963421, 焊接端接, 4A

2 针位端子块 接头,公引脚,带罩(4 面) 0.098"(2.50mm) 90°,直角 - 通孔


得捷:
TERM BLOCK HDR 2POS 90DEG 2.5MM


欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 2路 2.5mm节距 1963421, 焊接端接, 4A


立创商城:
2.5mm 排数:1 每排P数:2


艾睿:
Mount this shrouded 1963421 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This HDR connector has 2 contacts that are plated with tin. Its pitch is 2.5 mm. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 4 A. It uses the solder termination method. 1963421 is housed in black polyamide. This product is 6.9 mm long, 8.1 mm tall and 10.1 mm deep.


Verical:
Conn Shrouded Header HDR 2 POS 2.5mm Solder RA Thru-Hole Cardboard


Online Components:
Conn Shrouded Header HDR 2 POS 2.5mm Solder RA Thru-Hole


Electro Sonic:
PCB headers - nominal current: 4 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...


1963421中文资料参数规格
技术参数

触点数 2

触点电镀 Silver

额定电流 4 A

排数 1

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 4 A

额定电压Max 160 V

额定电压 160 V

封装参数

安装方式 Through Hole

封装 -

外形尺寸

高度 8.1 mm

封装 -

物理参数

外壳颜色 Black

颜色 Black

触点材质 Tin

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

1963421引脚图与封装图

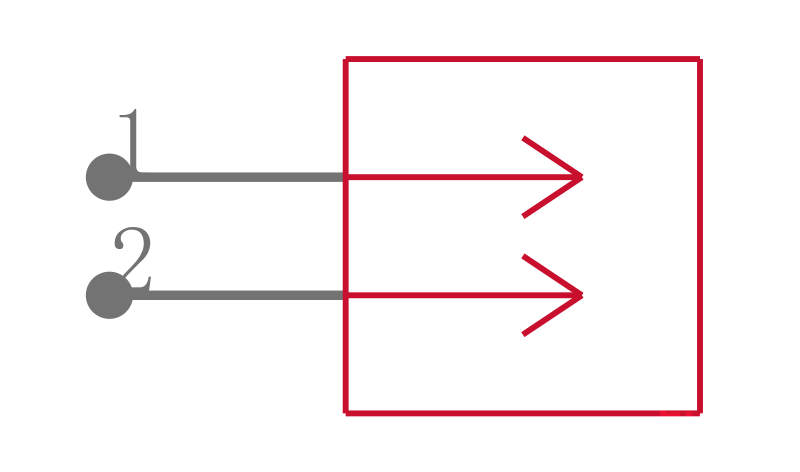

1963421引脚图

1963421引脚图

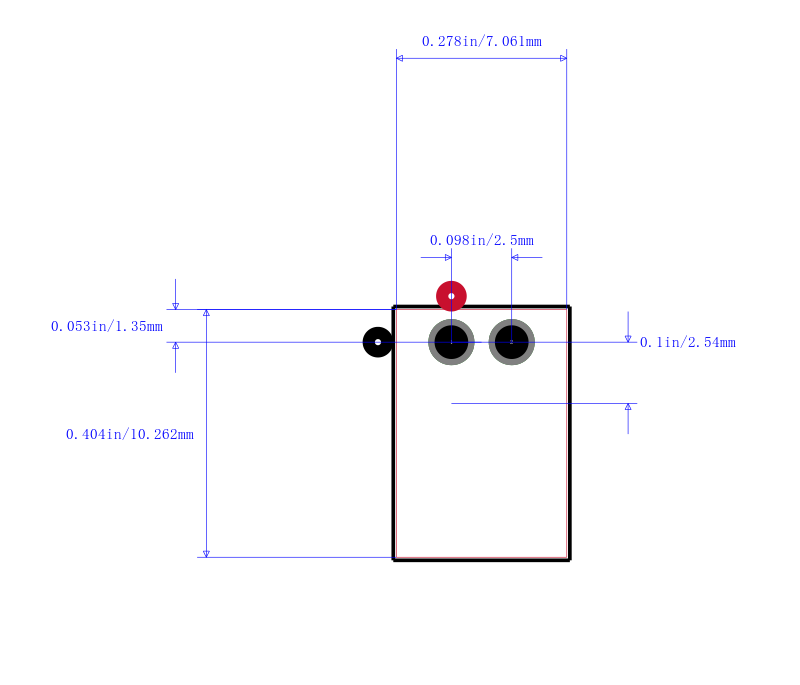

1963421封装图

1963421封装图

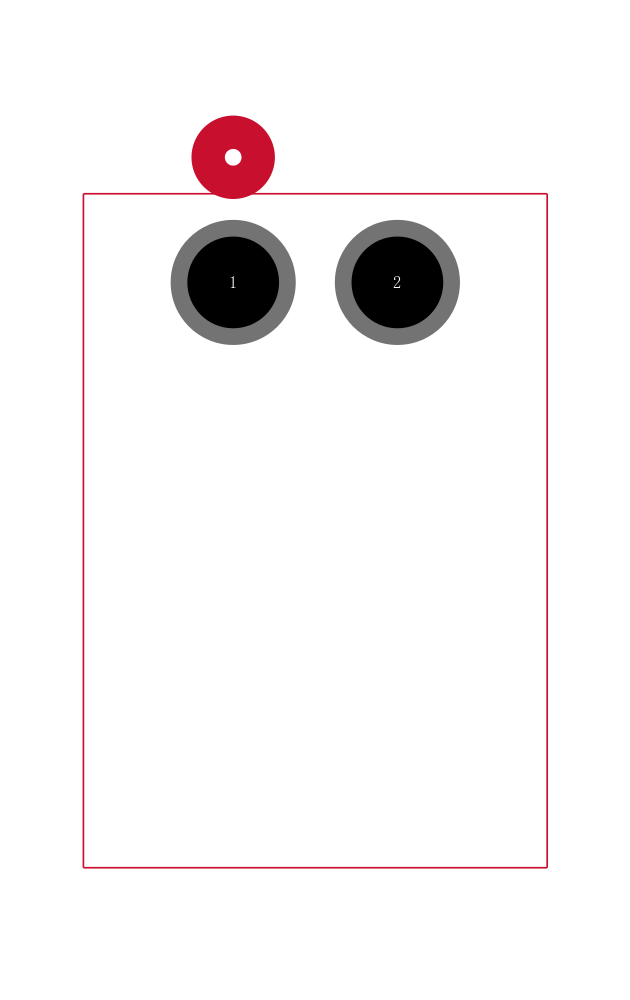

1963421封装焊盘图

1963421封装焊盘图

在线购买1963421
型号 制造商 描述 购买
1963421 Phoenix 菲尼克斯 Phoenix Contact PCB 接线端子块 COMBICON MC 系列 2路 2.5mm节距 1963421, 焊接端接, 4A 搜索库存
