Phoenix(菲尼克斯) 连接器与适配器

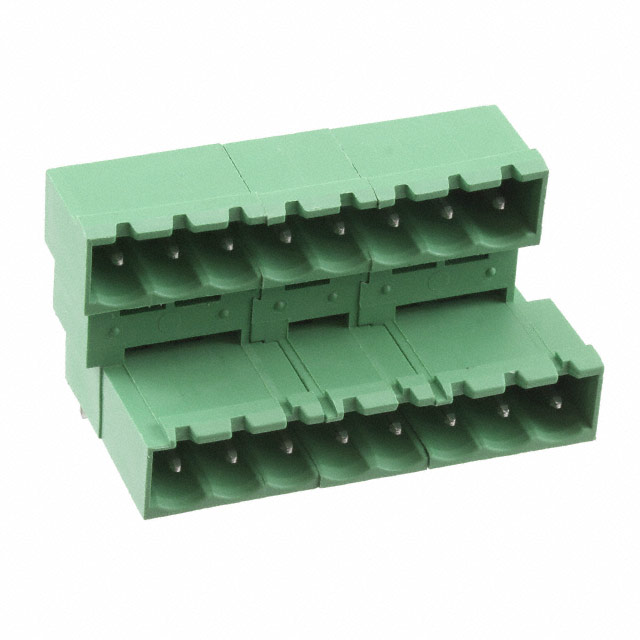

Conn Shrouded Header HDR 16POS 5.08mm Solder RA Thru-Hole

Contact CLASSIC COMBICON MDSTBA & MDSTB 5.08mm Double Level Terminal Block Headers


得捷:
TERM BLOCK HDR 16POS 5.08MM


艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 1842128 header connector from Phoenix Contact. This HDR connector has 16 contacts that are plated with tin. This is a 2-row connector. Its pitch is 5.08 mm. It has a header type gender. It has a maximum voltage rating of 320 V. It has a right angle body orientation. This device has a maximum current rating of 10 A. This product is 45.18 mm long, 23.7 mm tall and 22.1 mm deep. It uses the solder termination method. 1842128 is housed in green polybutylene terephthalate.


Allied Electronics:
COMBICON MDSTBA Series 5.08mm Pitch Straight Pluggable Trm Blk, PCB Header


Verical:
Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole


MASTER:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3


Online Components:
Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole


Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1842128中文资料参数规格
技术参数

触点数 16

触点电镀 Silver

排数 2

易燃性等级 UL 94 V-0

针脚数 16

额定电流Max 10 A

额定电压Max 320 V

额定电压 300 V

封装参数

安装方式 Through Hole

引脚间距 5.08 mm

外形尺寸

高度 23.7 mm

引脚间距 5.08 mm

物理参数

外壳颜色 Green

颜色 Green

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

1842128引脚图与封装图
暂无图片
在线购买1842128
型号 制造商 描述 购买
1842128 Phoenix 菲尼克斯 Conn Shrouded Header HDR 16POS 5.08mm Solder RA Thru-Hole 搜索库存
