103673-9

AMPMODU 10 位置 通孔 单排 直角 0.100英寸 针座

10 MTE HDR SRRA LATCH W/HLDWN

Product Highlights

Header

Number of Positions = 10

Number of Rows = Single

Post Size = 0.64 [.025] mm [in]

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 10POS 2.54MM

贸泽:
Headers & Wire Housings LATCHING HDR SHRD 10 with hold down

艾睿:

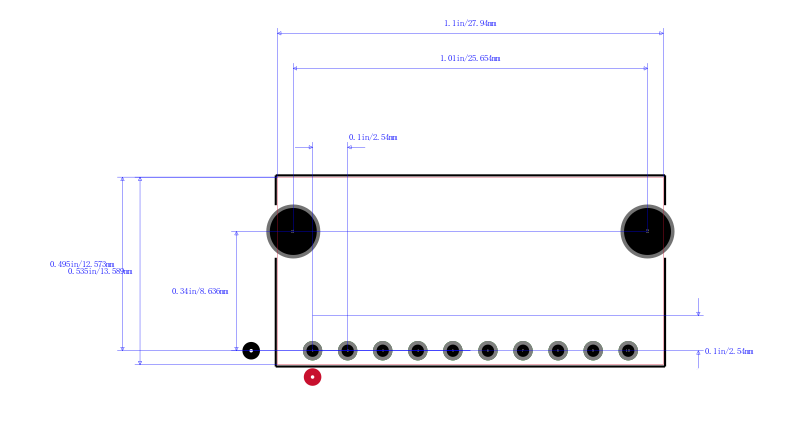

This shrouded 103673-9 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 27.94 mm long, 6.99 mm tall and 13.59 mm deep. 103673-9 is housed in black thermoplastic.

Jameco:
Connector Shrouded Header 10 Position 2.54mm Solder Right Angle Thru-Hole Tube

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2.54mm Solder RA Side Entry Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  103673-9  10 MTE HDR SRRA LATCH W/HLDWN

MASTER:
HDR ASSY, RT ANG, SINGLE ROW 2.54[.100] C/L 0.641[.025] SQ. POST, WITH PLZN&HOLD

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
10 MTE HDR SRRA LATCH W/HLDWN

Electro Sonic:
10 MTE HDR SRRA LATCH W/HLDWN
