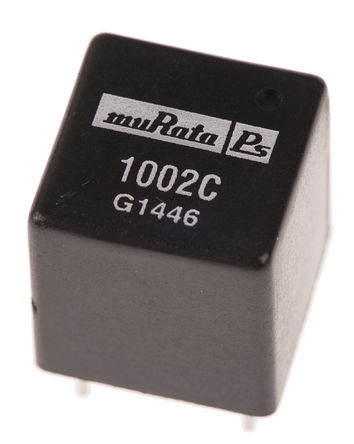

1002C

MURATA POWER SOLUTIONS  1002C  脉冲变压器, 电路板, 1:1:1, 3 mH, 1.4 ohm, 200 Vµs, 2 kV, 1000 Series

Murata 脉冲，1000 系列

1000 系列脉冲变压器旨在用于宽带和脉冲操作。 它们还适用于信号隔离和小型隔离电源。

体积小巧，使其特别适用于对空间要求严格的应用

隔离高达 4kVrms

欧时:
### Murata 脉冲变压器，1000 系列1000 系列脉冲变压器旨在用于宽带和脉冲操作。 它们还适用于信号隔离和小型隔离电源。 体积小巧，使其特别适用于对空间要求严格的应用 隔离高达 4kVrms ### 600 Ohm 线路隔离，脉冲匹配和高频变压器

得捷:
TRANSFORMER PULSE 1:1:1 200VUS

e络盟:
脉冲变压器, 电路板, 1:1:1, 3 mH, 1.4 ohm, 200 Vµs, 2 kV, 1000 Series

艾睿:
This 1002C pulse transformer from Murata Power Solutions is optimized for transmitting electrical pulses of digital information. This pulse transformer has an operating temperature range of 0 °C to 70 °C. It has 6 terminals. It has a turn ratio of 1:1:1. This product is 15.06 mm long, 15.75 mm tall and 15.06 mm deep. It also has a pulse transformer. The maximum DCR on the primary side is 1.4 Ohm, while its 1.3|1.7 Ohm on the secondary side.

安富利:
Pulse Transformer 1:1:1 2000Vrms 1.4Ohm Prim. DCR 1.3Ohm/1.7Ohm Sec. DCR 28pF 200Vus Through Hole

Chip1Stop:
Pulse Transformer 1:1:1 2000Vrms 1.4Ohm Prim. DCR 1.3Ohm/1.7Ohm Sec. DCR 28pF 200Vus Through Hole

Verical:
Pulse Transformer 1:1:1 2000Vrms 1.4Ohm Prim. DCR 1.3Ohm/1.7Ohm Sec. DCR 51pF 6 Terminal PC Pin Thru-Hole

Newark:
# MURATA POWER SOLUTIONS  1002C  Pulse Transformer, PCB, 1:1:1, 3 mH, 1.4 ohm, 200 Vµs, 2 kV, 1000 Series

AMEYA360:
1:1 印刷电路板安装 电信变压器, 3mH, 1.4Ω
