1241.6664.1131000

1241.6664.1131000

数据手册.pdf
Schurter 工业控制

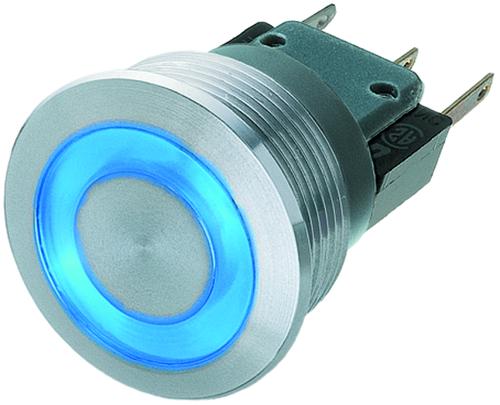

Switch Push Button N.O./N.C. SPDT Flush Round Button 10A 250VAC Quick Connect Panel Mount Box

Both the housing and the actuator of the vandal-proof MSM switch are made of high-quality stainless steel. By applying this robust and weather-resistant material, the switch is particularly suitable for use in harsh environments.


立创商城:
1241.6664.1131000


艾睿:
Switch Push Button N.O./N.C. SPDT Flush Round Button 10A 250VAC Panel Mount Quick Connect Box


Allied Electronics:
MSM30 RI SF 10 A @250VAC RD


安富利:
MSM30 RI SF 10 A @250VAC RD


Newark:
# SCHURTER  1241.6664.1131000  MSM30 RI SF 10 A @250VAC RD


CDI:
MSM30 RI SF 10 A @250VAC RT


1241.6664.1131000中文资料参数规格
技术参数

触点电镀 Silver

额定电流 10 A

排数 1

触点类型 SPDT

触点额定电流 5.00 A

额定电流Max 10A @250VAC

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压 250 VAC

封装参数

安装方式 Quick Connect, Snap-In

封装 -

外形尺寸

长度 20 mm

高度 35.15 mm

封装 -

物理参数

工作温度 -25℃ ~ 85℃

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

1241.6664.1131000引脚图与封装图
暂无图片
在线购买1241.6664.1131000
型号 制造商 描述 购买
1241.6664.1131000 Schurter Switch Push Button N.O./N.C. SPDT Flush Round Button 10A 250VAC Quick Connect Panel Mount Box 搜索库存
